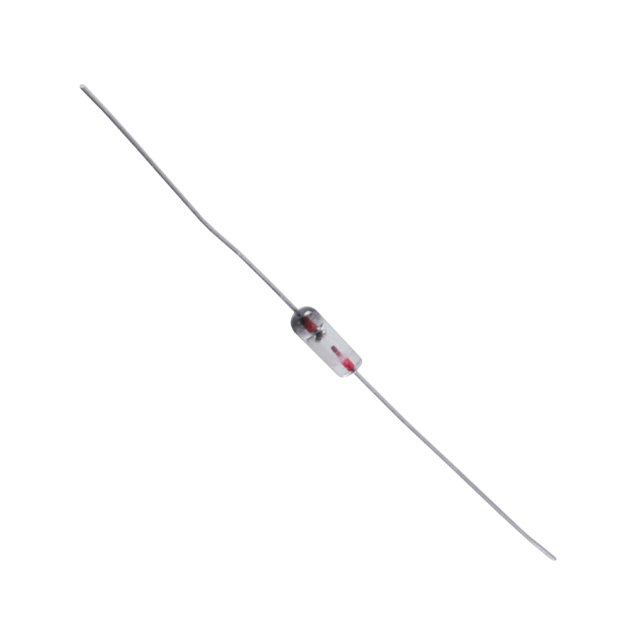

NTE110A

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Rectifiers - Single

Capacitance @ Vr, F :

-

Supplier Package :

DO-7

Current - Reverse Leakage @ Vr :

65 µA @ 10 V

Supplier Device Package :

DO-7

Power Dissipation-Max :

0.08 W

Mounting :

Through Hole

Configuration :

Single

Package Type :

DO-7

Manufacturer :

NTE Electronics

Number of Terminals :

2

Output Current-Max :

0.15 A

RoHS Status :

RoHS Compliant

Reach Compliance Code :

Unknown

Package :

Bag

ECCN Code :

EAR99

Qualification Status :

Not Qualified

PCB changed :

2

Maximum Operating Temperature (°C) :

85

Package Height :

2.72

Maximum Continuous Forward Current (A) :

0.15

ECCN (US) :

EAR99

Series :

-

Diode Type :

Standard

Peak Reverse Current (uA) :

65@10V

Package Width :

2.72

Maximum Forward Current :

150(mA)

Rad Hardened :

No

Rep Pk Reverse Voltage-Max :

30 V

JESD-30 Code :

O-LALF-W2

Terminal Position :

Dual

Standard Package Name :

DO-204-AA

Operating Temperature Classification :

Industrial

Mounting Type :

Through Hole

Diode Element Material :

GERMANIUM

Additional Feature :

LOW NOISE

Peak Reverse Current :

65(uA)

Lead Shape :

Through Hole

Subcategory :

Rectifier Diodes

Operating Temperature - Junction :

-65°C ~ 85°C

Package / Case :

DO-204AA, DO-7, Axial

Voltage - Forward (Vf) (Max) @ If :

1 V @ 5 mA

Peak Rep Rev Volt :

30(V)

Product Status :

Active

Minimum Operating Temperature (°C) :

-65

Surface Mount :

yes

Voltage - DC Reverse (Vr) (Max) :

30 V

Pin Count :

2

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Maximum Power Dissipation (mW) :

80

Case Connection :

Isolated

Operating Temp Range :

-65C to 85C

Peak Reverse Repetitive Voltage (V) :

30

Current - Average Rectified (Io) :

150mA

Package Length :

7.63

Number of Elements :

1

Power Dissipation (Max) :

80(mW)

Terminal Form :

Wire

Forward Current :

150(mA)

Military :

No

Package Shape :

Round

HTS :

8541.10.00.70

HTS Code :

8541.10.00.70

Speed :

Small Signal =< 200mA (Io), Any Speed

Peak Forward Voltage (V) :

1@5mA

Rev Curr :

65(uA)
