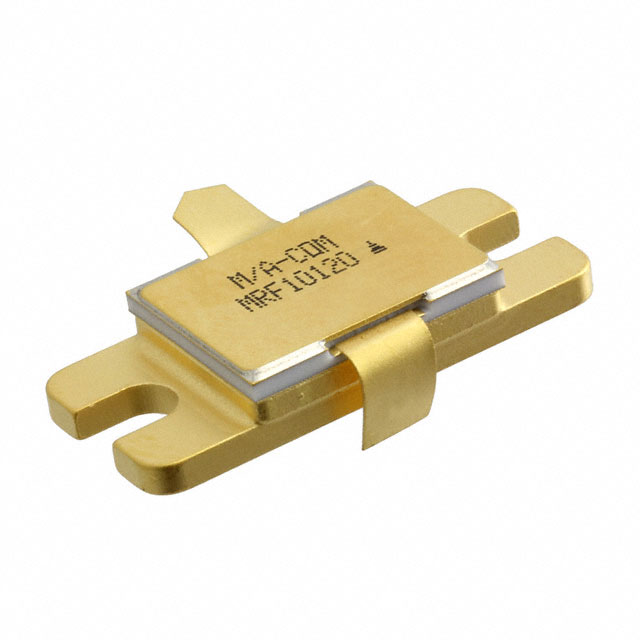

MRF10120

Manufacturer :

MACOM Technology Solutions

Product Category :

Transistors - Bipolar (BJT) - RF

Mounting Type :

Chassis Mount

Collector Base Voltage (VCBO) :

55V

Terminal Form :

Flat

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

20 Weeks

Number of Elements :

1

Published :

2009

Collector Emitter Breakdown Voltage :

55V

DC Current Gain (hFE) (Min) @ Ic, Vce :

20 @ 5A 5V

Emitter Base Voltage (VEBO) :

3.5V

Case Connection :

Base

hFE Min :

20

Number of Terminations :

2

Terminal Position :

Dual

Polarity/Channel Type :

NPN

JESD-30 Code :

R-CDFM-F2

Gain :

8.5dB

Number of Pins :

3

Pin Count :

2

Max Collector Current :

15A

Power Dissipation :

380W

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

Transistor Application :

AMPLIFIER

Collector Emitter Voltage (VCEO) :

55V

Packaging :

Tray

Power - Max :

120W

Operating Temperature :

200°C TJ

Mount :

Chassis Mount, Screw

Element Configuration :

Single

Continuous Collector Current :

15A

Radiation Hardening :

No

Transistor Type :

NPN

Package / Case :

355C-02

Frequency :

1.215GHz

Max Power Dissipation :

380W

Additional Feature :

WITH EMITTER BALLASTING RESISTOR

Transistor Element Material :

SILICON
