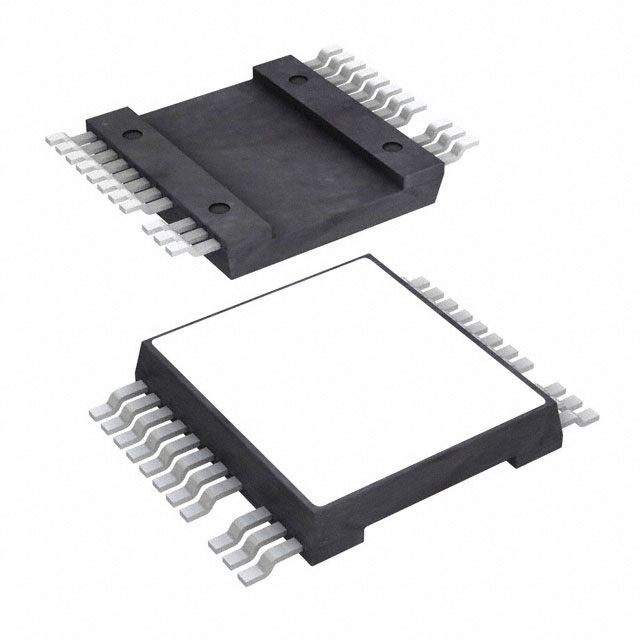

MMIX1T132N50P3
Or copy the link below:
- Mfr.Part #
- MMIX1T132N50P3
- Manufacturer
- Littelfuse
- Package / Case
- 24-PowerSMD, 22 Leads
- Datasheet
- Download
- Description
- MOSFET N-CH 500V 63A POLAR3
- Stock
- 17
- In Stock ：
- 17
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Littelfuse
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Factory Lead Time :
- 30 Weeks
- Power Dissipation (Max) :
- 520W (Tc)
- Current - Continuous Drain (Id) @ 25°C :
- 63A Tc
- Operating Temperature :
- -55°C~150°C TJ
- Supplier Device Package :
- Polar3™
- Vgs(th) (Max) @ Id :
- 5V @ 8mA
- Published :
- 2016
- RoHS Status :
- ROHS3 Compliant
- Pbfree Code :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- FET Type :
- N-Channel
- Packaging :
- Tube
- Gate Charge (Qg) (Max) @ Vgs :
- 267nC @ 10V
- Continuous Drain Current (ID) :
- 63A
- Input Capacitance (Ciss) (Max) @ Vds :
- 18600pF @ 25V
- Product Status :
- Active
- Rds On (Max) @ Id, Vgs :
- 43m Ω @ 66A, 10V
- Base Product Number :
- MMIX1T132
- Package / Case :
- 24-PowerSMD, 22 Leads
- Power Dissipation-Max :
- 520W Tc
- Package :
- Tube
- Drain to Source Voltage (Vdss) :
- 500V
- Vgs (Max) :
- ±30V
- Drive Voltage (Max Rds On,Min Rds On) :
- 10V
- Manufacturer :
- IXYS Corporation
- Reach Compliance Code :
- Compliant
- Mounting Type :
- Surface Mount
- FET Feature :
- --
- Mount :
- Surface Mount
- Series :
- Polar™
- Datasheets
- MMIX1T132N50P3
N-Channel Tube 43m Ω @ 66A, 10V ±30V 18600pF @ 25V 267nC @ 10V 500V 24-PowerSMD, 22 Leads
MMIX1T132N50P3 Overview
Input capacitance, CI, is defined as the capacitance between two input terminals of an op amp with one input grounded, and the input capacitance of this device is 18600pF @ 25V.This device has a continuous drain current (ID) of [63A], which is its maximum continuous current.In order to operate this transistor, a voltage of 500V is needed from the drain to the source (Vdss).Its overall power consumption can be reduced by using drive voltage (10V).
MMIX1T132N50P3 Features
a continuous drain current (ID) of 63A
a 500V drain to source voltage (Vdss)
MMIX1T132N50P3 Applications
There are a lot of IXYS
MMIX1T132N50P3 applications of single MOSFETs transistors.
- Uninterruptible Power Supply
- AC-DC Power Supply
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
- Battery Protection Circuit
