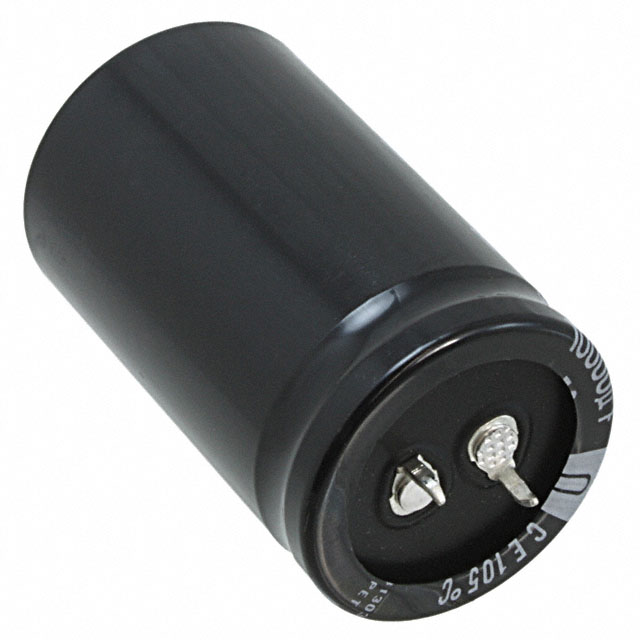

LGU1K562MELB

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Ripple Current @ High Frequency :

4.37A @ 50kHz

Lead Pitch :

10mm

Termination :

Snap in

Lead Spacing :

0.394 10.00mm

Ripple Current :

3.8A

HTS Code :

8532.22.00

Operating Temperature :

-40°C~105°C

Lifetime @ Temp :

3000 Hrs @ 105°C

Applications :

GENERAL PURPOSE

Capacitance :

5600µF

Factory Lead Time :

19 Weeks

Dielectric Material :

ALUMINUM (WET)

Height :

50mm

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

JESD-609 Code :

e3

Package / Case :

Radial, Can - Snap-In

Mounting Type :

Through Hole

Number of Terminations :

2

Published :

2009

Leakage Current :

2mA

Life (Hours) :

3000 hours

Terminal Finish :

Matte Tin (Sn)

Height Seated (Max) :

2.047 52.00mm

Feature :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Size / Dimension :

1.181Dia 30.00mm

Polarization :

Polar

Series :

LGU

Ripple Current @ Low Frequency :

3.8A @ 120Hz

Tan Delta :

0.2

Diameter :

30mm

Voltage - Rated DC :

80V

Packaging :

Bulk

Mount :

Through Hole

Radiation Hardening :

No

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Pbfree Code :

yes

Tolerance :

±20%
