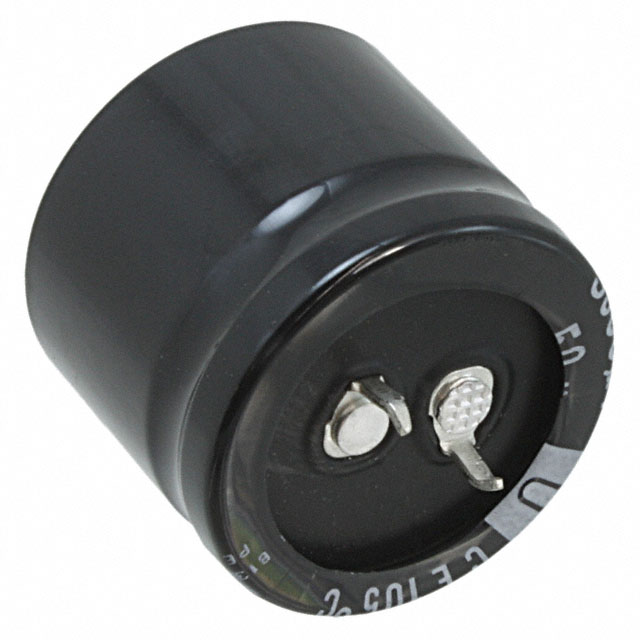

LGU1C123MELB

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Ripple Current @ Low Frequency :

2.38A @ 120Hz

Size / Dimension :

1.181Dia 30.00mm

Applications :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Polarization :

Polar

Pbfree Code :

yes

Packaging :

Bulk

Operating Temperature :

-40°C~105°C

Lead Spacing :

0.394 10.00mm

Mounting Type :

Through Hole

Voltage - Rated DC :

16V

Life (Hours) :

3000 hours

Diameter :

30mm

Feature :

GENERAL PURPOSE

Ripple Current @ High Frequency :

2.737A @ 50kHz

Package / Case :

Radial, Can - Snap-In

Height :

25mm

Factory Lead Time :

19 Weeks

HTS Code :

8532.22.00

Termination :

Snap in

RoHS Status :

ROHS3 Compliant

Ripple Current :

2.38A

Capacitance :

12000µF

Dielectric Material :

ALUMINUM (WET)

Terminal Finish :

Matte Tin (Sn)

Lifetime @ Temp :

3000 Hrs @ 105°C

Number of Terminations :

2

Lead Pitch :

10mm

Radiation Hardening :

No

Published :

2009

Tolerance :

±20%

Tan Delta :

0.5

ECCN Code :

EAR99

Mount :

Through Hole

Leakage Current :

1.31mA

Series :

LGU

Height Seated (Max) :

1.063 27.00mm

JESD-609 Code :

e3
