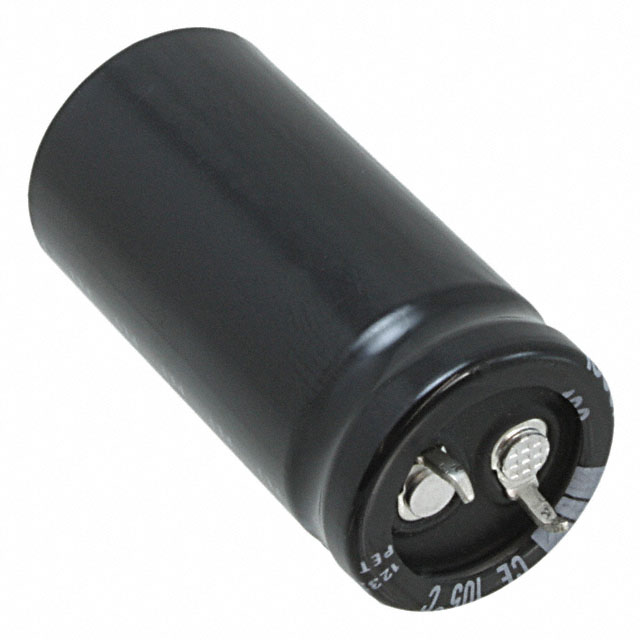

LGU1C183MELZ

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Polarization :

Polar

Height Seated (Max) :

1.850 47.00mm

Mounting Type :

Through Hole

Factory Lead Time :

19 Weeks

Ripple Current :

2.98A

Package / Case :

Radial, Can - Snap-In

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Termination :

Snap in

Radiation Hardening :

No

JESD-609 Code :

e3

Mount :

Through Hole

Dielectric Material :

ALUMINUM (WET)

Capacitance :

18000μF

Pbfree Code :

yes

Height :

45mm

Published :

2009

Applications :

GENERAL PURPOSE

Packaging :

Bulk

Feature :

GENERAL PURPOSE

Series :

LGU

Diameter :

22mm

Ripple Current @ High Frequency :

3.427A @ 50kHz

Leakage Current :

1.6mA

RoHS Status :

ROHS3 Compliant

Lifetime @ Temp :

3000 Hrs @ 105°C

Ripple Current @ Low Frequency :

2.98A @ 120Hz

Operating Temperature :

-40°C~105°C

Voltage - Rated DC :

16V

HTS Code :

8532.22.00

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Terminations :

2

Lead Spacing :

0.394 10.00mm

Terminal Finish :

Matte Tin (Sn)

Life (Hours) :

3000 hours

ECCN Code :

EAR99

Lead Pitch :

10mm

Tan Delta :

0.5

Size / Dimension :

0.866Dia 22.00mm

Tolerance :

±20%
