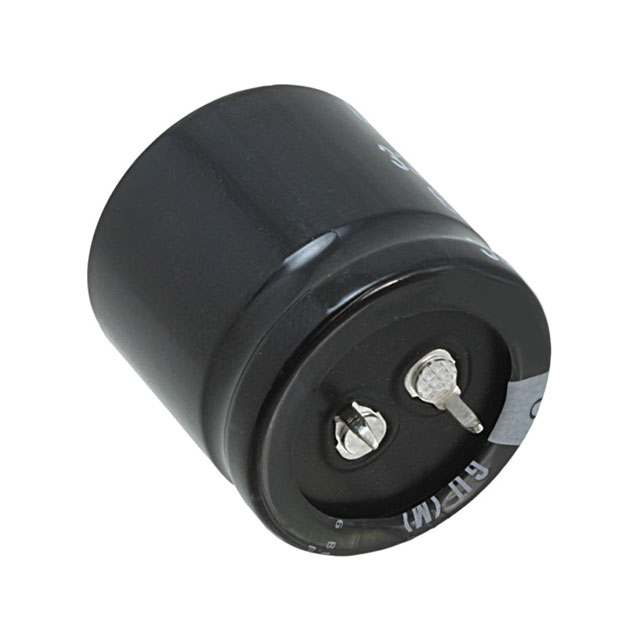

LGU1C153MELB

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Packaging :

Bulk

Tan Delta :

0.5

Package / Case :

Radial, Can - Snap-In

Lifetime @ Temp :

3000 Hrs @ 105°C

Voltage - Rated DC :

16V

Life (Hours) :

3000 hours

Lead Pitch :

10mm

JESD-609 Code :

e3

Ripple Current @ Low Frequency :

2.57A @ 120Hz

HTS Code :

8532.22.00

Radiation Hardening :

No

Feature :

GENERAL PURPOSE

Applications :

GENERAL PURPOSE

Termination :

Snap in

Series :

LGU

Number of Terminations :

2

Tolerance :

±20%

Leakage Current :

1.46mA

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Factory Lead Time :

19 Weeks

Terminal Finish :

Matte Tin (Sn)

RoHS Status :

ROHS3 Compliant

Height :

30mm

Height Seated (Max) :

1.260 32.00mm

Mount :

Through Hole

Ripple Current @ High Frequency :

2.9555A @ 50kHz

Capacitance :

15000µF

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Ripple Current :

2.57A

ECCN Code :

EAR99

Published :

2009

Lead Spacing :

0.394 10.00mm

Diameter :

30mm

Mounting Type :

Through Hole

Dielectric Material :

ALUMINUM (WET)

Operating Temperature :

-40°C~105°C

Size / Dimension :

1.181Dia 30.00mm

Polarization :

Polar

Pbfree Code :

yes
