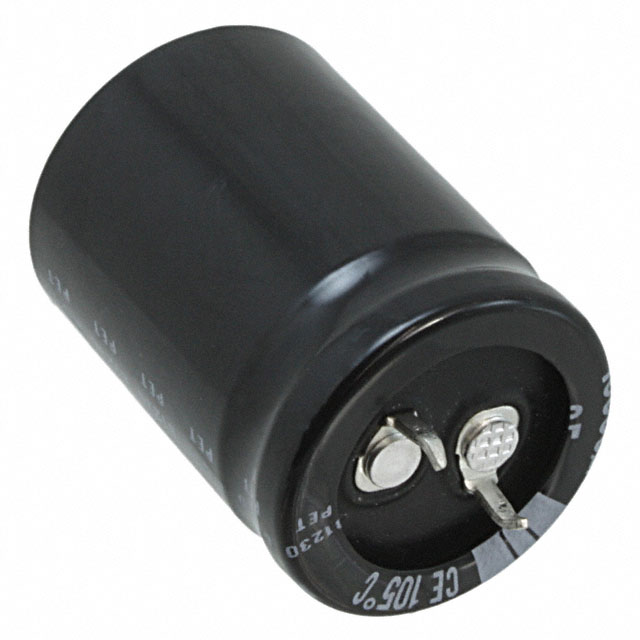

LGU1C153MELA

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

RoHS Status :

ROHS3 Compliant

Lead Diameter :

800 µm

Feature :

GENERAL PURPOSE

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Ripple Current @ Low Frequency :

2.68A @ 120Hz

Factory Lead Time :

19 Weeks

Lifetime @ Temp :

3000 Hrs @ 105°C

Applications :

GENERAL PURPOSE

Mounting Type :

Through Hole

Dielectric Material :

ALUMINUM (WET)

Leakage Current :

1.46mA

Diameter :

25mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

Life (Hours) :

3000 hours

Polarization :

Polar

Ripple Current @ High Frequency :

3.082A @ 50kHz

Termination :

Snap in

Tolerance :

±20%

Package / Case :

Radial, Can - Snap-In

Tan Delta :

0.5

Operating Temperature :

-40°C~105°C

Voltage - Rated DC :

16V

HTS Code :

8532.22.00

Size / Dimension :

0.984Dia 25.00mm

Voltage :

16V

Terminal Finish :

Matte Tin (Sn)

JESD-609 Code :

e3

Packaging :

Bulk

Radiation Hardening :

No

Lead Pitch :

10mm

Series :

LGU

Number of Terminations :

2

Height :

35mm

Ripple Current :

2.68A

Published :

2009

Lead Spacing :

0.394 10.00mm

Height Seated (Max) :

1.457 37.00mm

Mount :

Through Hole

Capacitance :

15000µF

Pbfree Code :

yes
