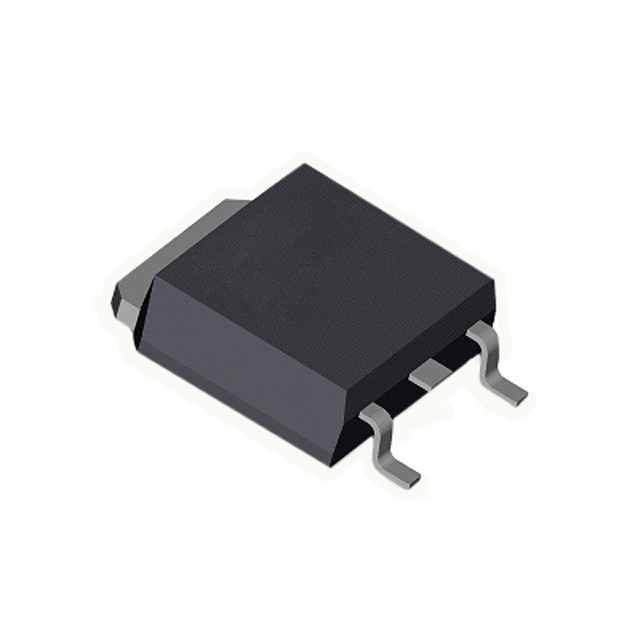

IXTY14N60X2

Manufacturer :

Littelfuse

Product Category :

Transistors - FETs, MOSFETs - Single

Gate Charge (Qg) (Max) @ Vgs :

16.7 nC @ 10 V

Product Category :

MOSFET

Channel Type :

N Channel

Base Product Number :

IXTY14

Operating Temperature :

-55°C ~ 150°C (TJ)

Vgs (Max) :

±30V

Product Type :

MOSFET

Manufacturer :

IXYS

FET Type :

N-Channel

Package :

Tube

Product Status :

Active

Packaging :

Tube

Transistor Polarity :

N-Channel

Mounting Style :

SMD/SMT

Drive Voltage (Max Rds On, Min Rds On) :

10V

Mounting Type :

Surface Mount

Continuous Drain Current Id :

14A

Transistor Type :

1 N-Channel

Supplier Device Package :

TO-252AA

Channel Mode :

Enhancement

Rds On (Max) @ Id, Vgs :

250mOhm @ 7A, 10V

Vgs(th) (Max) @ Id :

4.5V @ 250μA

Qualification :

-

Drain to Source Voltage (Vdss) :

600 V

Maximum Operating Temperature :

+ 150 C

Subcategory :

MOSFETs

Package / Case :

TO-252-3, DPak (2 Leads + Tab), SC-63

Series :

Ultra X2

RoHS :

Details

Rise Time :

27 ns

Minimum Operating Temperature :

- 55 C

Brand :

IXYS

Power Dissipation :

180W

FET Feature :

-

Number of Channels :

1 Channel

Power Dissipation (Max) :

180W (Tc)

Configuration :

Single

Input Capacitance (Ciss) (Max) @ Vds :

740 pF @ 25 V

Current - Continuous Drain (Id) @ 25°C :

14A (Tc)
