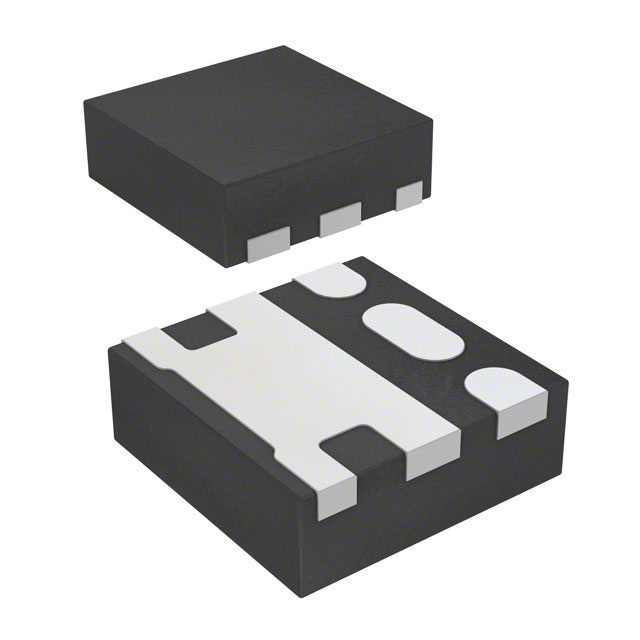

FDME910PZT

Manufacturer :

Fairchild Semiconductor

Product Category :

Transistors - FETs, MOSFETs - Single

Case Connection :

DRAIN

JESD-609 Code :

e4

Vgs(th) (Max) @ Id :

1.5V @ 250µA

Factory Lead Time :

16 Weeks

Transistor Element Material :

SILICON

Published :

2017

Gate Charge (Qg) (Max) @ Vgs :

21nC @ 4.5V

Mounting Type :

Surface Mount

Lead Free :

Lead Free

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Package / Case :

6-PowerUFDFN

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Drain Current-Max (Abs) (ID) :

8A

Power Dissipation :

2.1W

Series :

PowerTrench®

Current - Continuous Drain (Id) @ 25°C :

8A Ta

Power Dissipation-Max :

2.1W Ta

Operating Temperature :

-55°C~150°C TJ

Rise Time :

11ns

Drain to Source Breakdown Voltage :

-20V

JESD-30 Code :

S-PDSO-N3

Continuous Drain Current (ID) :

8A

Height :

500μm

Input Capacitance (Ciss) (Max) @ Vds :

2110pF @ 10V

Vgs (Max) :

±8V

Rds On (Max) @ Id, Vgs :

24m Ω @ 8A, 4.5V

Fall Time (Typ) :

46 ns

Length :

1.6mm

Feedback Cap-Max (Crss) :

330 pF

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Drive Voltage (Max Rds On,Min Rds On) :

1.8V 4.5V

Gate to Source Voltage (Vgs) :

8V

Element Configuration :

Single

Number of Pins :

6

Turn On Delay Time :

9 ns

Operating Mode :

ENHANCEMENT MODE

Number of Terminations :

3

Pbfree Code :

yes

RoHS Status :

ROHS3 Compliant

Drain-source On Resistance-Max :

0.024Ohm

Mount :

Surface Mount

Terminal Position :

Dual

Turn-Off Delay Time :

87 ns

Drain to Source Voltage (Vdss) :

20V

Packaging :

Tape and Reel (TR)

Transistor Application :

SWITCHING

Radiation Hardening :

No

Width :

1.6mm

Weight :

30mg

FET Type :

P-Channel

Number of Elements :

1

ECCN Code :

EAR99
