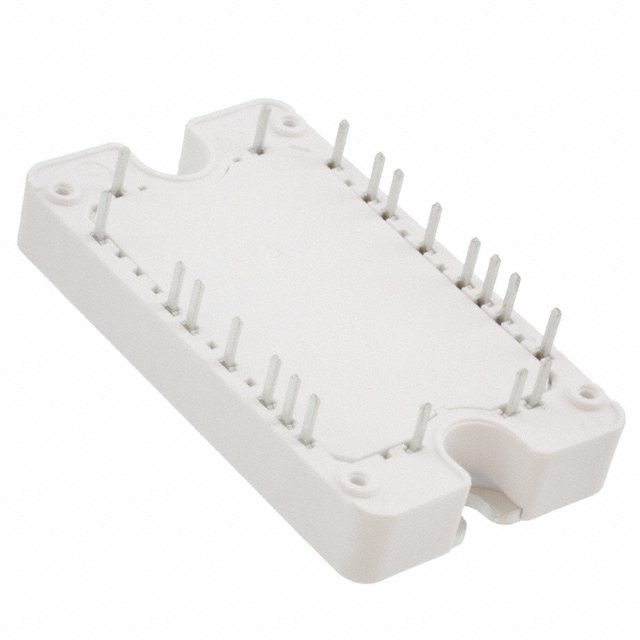

APTC60HM70RT3G

Manufacturer :

Microchip Technology

Product Category :

Transistors - FETs, MOSFETs - Arrays

Number of Elements :

4

Radiation Hardening :

No

ECCN Code :

EAR99

Mount :

Screw

FET Feature :

Standard

Fall Time (Typ) :

84 ns

Drain to Source Voltage (Vdss) :

600V

Max Power Dissipation :

250W

Packaging :

Bulk

Series :

CoolMOS™

Package / Case :

SP3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Pins :

3

Continuous Drain Current (ID) :

39A

Published :

1999

Turn-Off Delay Time :

283 ns

Gate to Source Voltage (Vgs) :

20V

Factory Lead Time :

36 Weeks

Input Capacitance (Ciss) (Max) @ Vds :

7000pF @ 25V

Rds On (Max) @ Id, Vgs :

70m Ω @ 39A, 10V

Gate Charge (Qg) (Max) @ Vgs :

259nC @ 10V

FET Technology :

METAL-OXIDE SEMICONDUCTOR

RoHS Status :

RoHS Compliant

Turn On Delay Time :

21 ns

FET Type :

4 N-Channel (H-Bridge) + Bridge Rectifier

Vgs(th) (Max) @ Id :

3.9V @ 2.7mA

Rise Time :

30ns

Operating Temperature :

-40°C~150°C TJ

Power Dissipation :

250W
