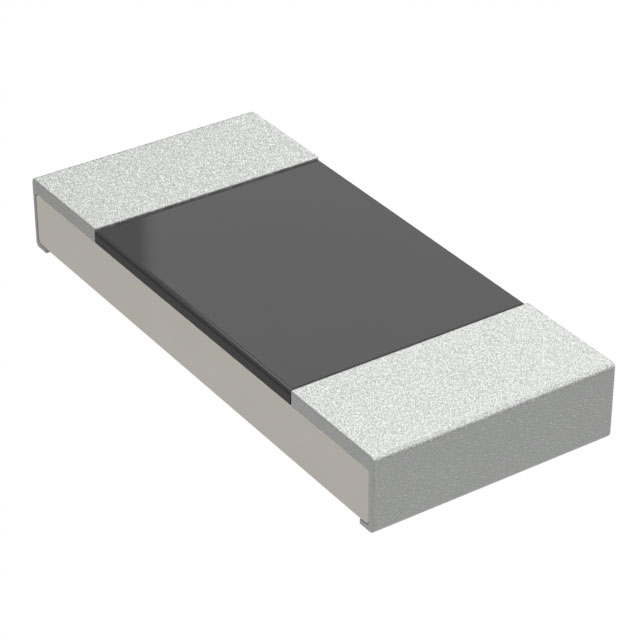

MCS1320R015FER

Manufacturer :

Ohmite

Product Category :

Chip Resistor - Surface Mount

Subcategory :

Resistors

Technology :

Metal Element

Maximum Operating Temperature :

+ 150 C

Packaging :

MouseReel

Termination Style :

SMD/SMT

Height :

0.5 mm

Length :

2.1 mm

Ratings :

-

Product Category :

Current Sense Resistors - SMD

Mounting Style :

PCB Mount

Number of Terminations :

2

Height - Seated (Max) :

0.028" (0.70mm)

Tolerance :

±1%

Package :

Cut Tape (CT)

Failure Rate :

-

Operating Temperature :

-55°C ~ 150°C

Termination :

2 Terminal

Product Status :

Active

Manufacturer :

Ohmite

Package / Case :

0805 (2012 Metric)

Composition :

Metal Element

Series :

MCS

Size / Dimension :

0.083" L x 0.053" W (2.10mm x 1.35mm)

Features :

Current Sense, Flame Retardant Coating, Safety

Application :

Current Sense

Temperature Coefficient :

±50ppm/°C

Product Type :

Current Sense Resistors

Width :

1.35 mm

Brand :

Ohmite

Power (Watts) :

0.75W, 3/4W

Supplier Device Package :

0805

Minimum Operating Temperature :

- 55 C

RoHS :

Details

Power Rating :

750 mW (3/4 W)

Resistance :

15 mOhms
