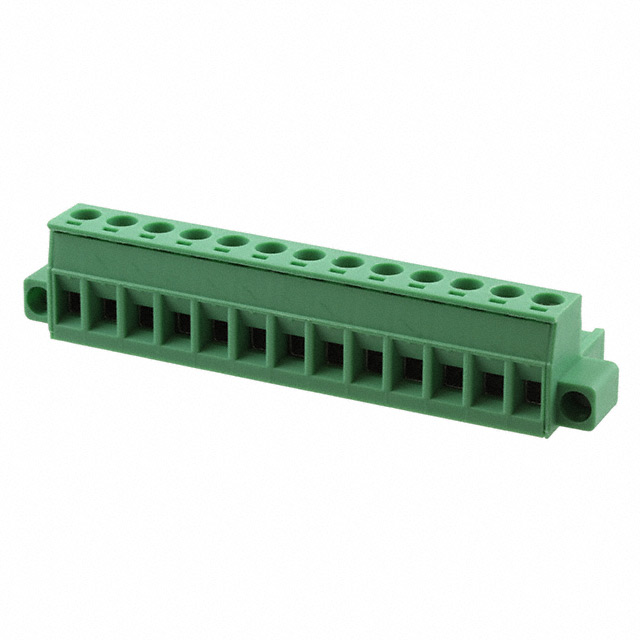

1778098

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Current :

15A

Contact Plating :

Tin

Voltage - Rated :

250V

ECCN Code :

EAR99

Reach Compliance Code :

Unknown

Pitch :

0.200 5.08mm

RoHS Status :

RoHS Compliant

Current Rating :

12A

Orientation :

RIGHT ANGLE

Voltage :

300V

Color :

Green

Plug Wire Entry :

180°

Connector Type :

Screw, Socket

Mount :

Free Hanging

Wire Gauge or Range - mm² :

0.2-2.5mm2

Termination :

Screw

Screw Size :

M3

Housing Material :

Polyamide (PA), Nylon

Packaging :

Bulk

Additional Feature :

POLYAMIDE, 94V-0

Wire Gauge or Range - AWG :

12-30 AWG

Feature :

Mating Flange

Weight :

128.999997g

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Current Rating :

12A

Number of Levels :

1

Height :

18.2mm

Number of Positions :

13

Type :

Plug, Female Sockets

Factory Lead Time :

4 Weeks

Termination Style :

Screw - Rising Cage Clamp

Safety Approval :

UL; CSA

Number of Ways :

13

Flammability Rating :

UL94 V-0

Max Supply Voltage :

320V

Series :

COMBICON MSTB

Voltage - IEC :

630V

Wire Strip Length :

7mm

Material Flammability Rating :

UL94 V-0

Wire Gauge (Min) :

24 AWG

Wire Gauge (Max) :

12 AWG

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)

Wire Cross Section :

2.5 mm2

Length :

15mm

HTS Code :

8536.69.40.40

Depth :

18.2mm

Published :

2010

Width :

76.05mm

Insulation Height :

0.591 15.00mm

Mounting Type :

Free Hanging (In-Line)
