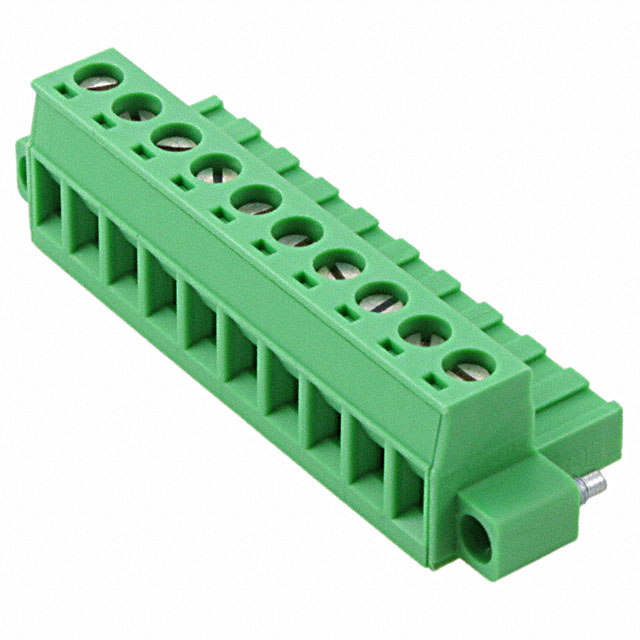

1778069

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Lead Free :

Lead Free

Number of Levels :

1

Orientation :

RIGHT ANGLE

Insulation Height :

0.591 15.00mm

Voltage - Rated :

250V

Length :

60.81mm

Max Current Rating :

12A

HTS Code :

8536.69.40.40

Contact Plating :

Tin

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)

Material :

Polyamide

Flammability Rating :

UL94 V-0

Mounting Type :

Free Hanging (In-Line)

Radiation Hardening :

No

Wire Gauge or Range - AWG :

12-30 AWG

Factory Lead Time :

6 Weeks

Voltage :

300V

Height :

18.2mm

Number of Contacts :

10

Current - UL :

15A

Current Rating :

12A

Width :

18.2mm

RoHS Status :

RoHS Compliant

Depth :

18.2mm

Type :

Plug, Female Sockets

Published :

2010

Pitch :

0.200 5.08mm

Wire Gauge (Min) :

12 AWG

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Safety Approval :

UL

Additional Feature :

PA, UL 94V-0

Number of Rows :

1

Voltage - IEC :

630V

Color :

Green

Housing Material :

Polyamide (PA), Nylon

Packaging :

Bulk

Wire Strip Length :

7mm

Feature :

Mating Flange

Wire Gauge or Range - mm² :

0.2-2.5mm2

Weight :

128.999997g

Number of Decks :

1

Wire Gauge (Max) :

30 AWG

Termination :

Screw

Pbfree Code :

yes

Connector Type :

Screw, Socket

Mount :

Free Hanging, Panel, Plug-In

Series :

COMBICON MSTB

Max Supply Voltage :

250V

Termination Style :

Screw - Rising Cage Clamp

Screw Size :

M3

Wire Cross Section :

2.5 mm2

Current :

12A

Number of Ways :

10

Gender :

FEMALE

Material Flammability Rating :

UL94 V-0

Plug Wire Entry :

180°
