1778056

Share

Or copy the link below:

Mfr.Part #
1778056
Manufacturer
Phoenix Contact
Package / Case
Datasheet
Download
Description
TERM BLOCK PLUG 9POS STR 5.08MM
Stock
172
In Stock :
172

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Phoenix Contact
Product Category :
Headers, Plugs and Sockets
Length :
15mm
Voltage - IEC :
630V
Current - UL :
15A
Number of Levels :
1
Wire Gauge (Min) :
12 AWG
Current :
12A
Voltage :
300V
Contact Plating :
Tin
Wire Strip Length :
7mm
Number of Rows :
1
Housing Material :
Polyamide (PA), Nylon
Factory Lead Time :
6 Weeks
Torque - Screw :
0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Gauge (Max) :
30 AWG
Mounting Type :
Free Hanging (In-Line)
Number of Ways :
9
Series :
COMBICON MSTB
RoHS Status :
RoHS Compliant
Number of Contacts :
9
Number of Decks :
1
Insulation Height :
0.591 15.00mm
Height :
18.2mm
Mount :
Free Hanging, Panel, Plug-In
Packaging :
Bulk
Flammability Rating :
UL94 V-0
Feature :
Mating Flange
Color :
Green
Orientation :
RIGHT ANGLE
Pitch :
0.200 5.08mm
Safety Approval :
UL
Type :
Plug, Female Sockets
Material :
Polyamide
Termination Style :
Screw - Rising Cage Clamp
Pbfree Code :
yes
Depth :
15mm
Wire Gauge or Range - AWG :
12-30 AWG
Plug Wire Entry :
180°
Wire Cross Section :
2.5 mm2
Published :
2003
Weight :
128.999997g
Max Current Rating :
12A
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Termination :
Screw
Width :
55.73mm
Current Rating :
12A
Material Flammability Rating :
UL94 V-0
Lead Free :
Lead Free
Wire Gauge or Range - mm² :
0.2-2.5mm2
Screw Size :
M3
Gender :
FEMALE
Connector Type :
Screw, Socket
Voltage - Rated :
250V
Datasheets
1778056
Introducing Headers, Plugs and Sockets Phoenix Contact 1778056 from Chip IC,where excellence meets affordability. This product stands out with its Voltage:300V, Mounting Type:Free Hanging (In-Line), Type:Plug, Female Sockets, 1778056 pinout, 1778056 datasheet PDF, 1778056 amp .Beyond Headers, Plugs and Sockets Phoenix Contact 1778056 ,we also offer 1984028, TJ0211530000G, 1945151, Our vast inventory has you covered. Contact us now for immediate solutions.

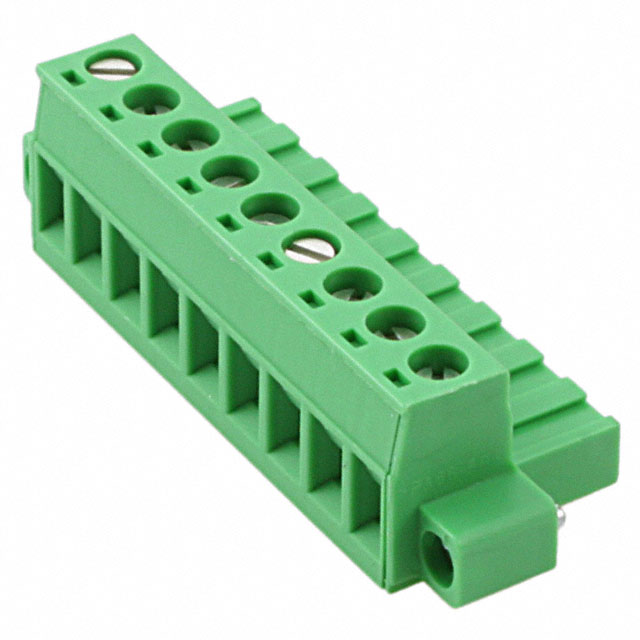

Phoenix Contact 1778056


Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MSTB Polyamide (PA), Nylon

1778056 Overview


Packaging is in the form of Screw, Socket.This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON MSTB Series.Several benefits come from the Mating Flange feature.There is a mounting hole at Free Hanging, Panel, Plug-In.There are many benefits that this part shares with other Plug, Female Sockets products as well.

1778056 Features


COMBICON MSTB series


1778056 Applications


There are a lot of Phoenix Contact
1778056 Terminal Blocks applications.


  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
