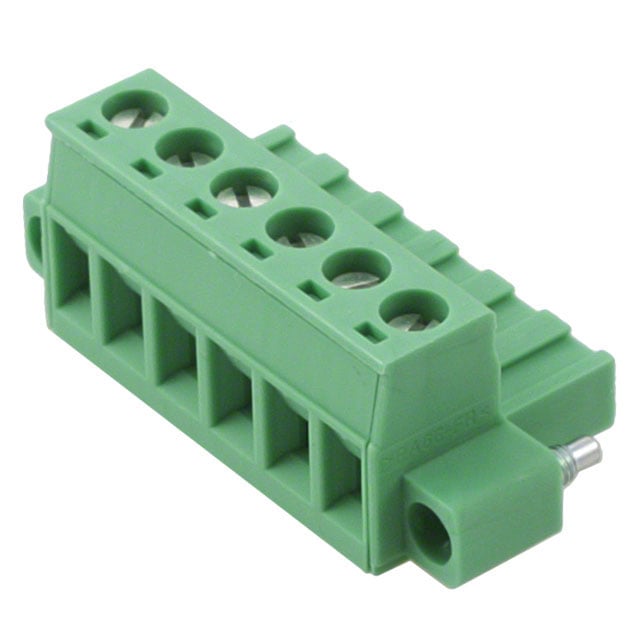

1778027

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Number of Ways :

6

Wire Gauge (Min) :

24 AWG

Voltage :

300V

Material Flammability Rating :

UL94 V-0

Wire Gauge or Range - AWG :

12-30 AWG

Insulation Height :

0.591 15.00mm

Current - UL :

15A

Gender :

FEMALE

Number of Decks :

1

Number of Levels :

1

Additional Feature :

PA, 94V-0

Wire Gauge or Range - mm² :

0.2-2.5mm2

Safety Approval :

UL

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)

Wire Strip Length :

7mm

Height :

18.2mm

Termination :

Screw

Number of Contacts :

6

Current Rating :

12A

Connector Type :

Screw, Socket

Pbfree Code :

yes

Orientation :

RIGHT ANGLE

Termination Style :

Screw - Rising Cage Clamp

Length :

31.9mm

Voltage - Rated :

250V

Published :

2008

ECCN Code :

EAR99

Max Current Rating :

12A

Lead Free :

Lead Free

Contact Plating :

Tin

Housing Material :

Polyamide (PA), Nylon

Wire Cross Section :

2.5 mm2

Weight :

128.999997g

Feature :

Mating Flange

Packaging :

Bulk

Approval Agency :

CB, CSA, UL, VDE, cULus

Wire Gauge (Max) :

12 AWG

Width :

18.2mm

Type :

Plug, Female Sockets

Radiation Hardening :

No

Pitch :

0.200 5.08mm

Flammability Rating :

UL94 V-0

Number of Rows :

1

Factory Lead Time :

5 Weeks

Max Supply Voltage :

250V

Color :

Green

Mount :

Free Hanging, Panel, Plug-In

Current :

12A

Voltage - IEC :

630V

Screw Size :

M3

Plug Wire Entry :

180°

Series :

COMBICON MSTB

Material :

Polyamide

RoHS Status :

RoHS Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Free Hanging (In-Line)

Depth :

18.2mm
