1778043

Share

Or copy the link below:

Mfr.Part #
1778043
Manufacturer
Phoenix Contact
Package / Case
Datasheet
Download
Description
TERM BLOCK PLUG 8POS STR 5.08MM
Stock
37
In Stock :
37

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Phoenix Contact
Product Category :
Headers, Plugs and Sockets
Depth :
18.2mm
Insulation Height :
0.591 15.00mm
Published :
2017
Pbfree Code :
yes
Termination Style :
Screw - Rising Cage Clamp
Color :
Green
Packaging :
Bulk
Safety Approval :
CB; CCA; CSA; CUL; EAC; GL
Length :
50.65mm
Wire Gauge (Max) :
30 AWG
Number of Levels :
1
Number of Ways :
8
Screw Size :
M3
Height :
18.2mm
Plug Wire Entry :
180°
Number of Contacts :
8
Wire Gauge or Range - mm² :
0.2-2.5mm2
Series :
COMBICON MSTB
Wire Strip Length :
7mm
Material Flammability Rating :
UL94 V-0
Wire Cross Section :
2.5 mm2
Max Supply Voltage :
250V
Material :
Polyamide
Housing Material :
Polyamide (PA), Nylon
Wire Gauge or Range - AWG :
12-30 AWG
Contact Material :
Copper
Flammability Rating :
UL94 V-0
Current Rating :
12A
Max Current Rating :
12A
Gender :
FEMALE
Number of Rows :
1
Voltage - Rated :
250V
Factory Lead Time :
5 Weeks
Width :
18.2mm
Feature :
Mating Flange
Current :
12A
Mounting Type :
Free Hanging (In-Line)
Additional Feature :
UL 94V-0, PA, SAFETY APPROVAL: RS; UL; VDE
Orientation :
RIGHT ANGLE
Connector Type :
Screw, Socket
Lead Free :
Lead Free
Termination :
Screw
Voltage :
300V
Mount :
Free Hanging, Panel, Plug-In
Torque - Screw :
0.5-0.6 Nm (4.4-5.3 Lb-In)
Contact Mating Finish :
Tin
Weight :
128.999997g
RoHS Status :
RoHS Compliant
Pitch :
0.200 5.08mm
Type :
Plug, Female Sockets
Wire Gauge (Min) :
12 AWG
Voltage - IEC :
630V
Number of Decks :
1
Radiation Hardening :
No
ECCN Code :
EAR99
Current - UL :
15A
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Datasheets
1778043
Introducing Headers, Plugs and Sockets Phoenix Contact 1778043 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), Voltage:300V, Type:Plug, Female Sockets, 1778043 pinout, 1778043 datasheet PDF, 1778043 amp .Beyond Headers, Plugs and Sockets Phoenix Contact 1778043 ,we also offer 1984028, TJ0211530000G, 1945151, Our vast inventory has you covered. Contact us now for immediate solutions.

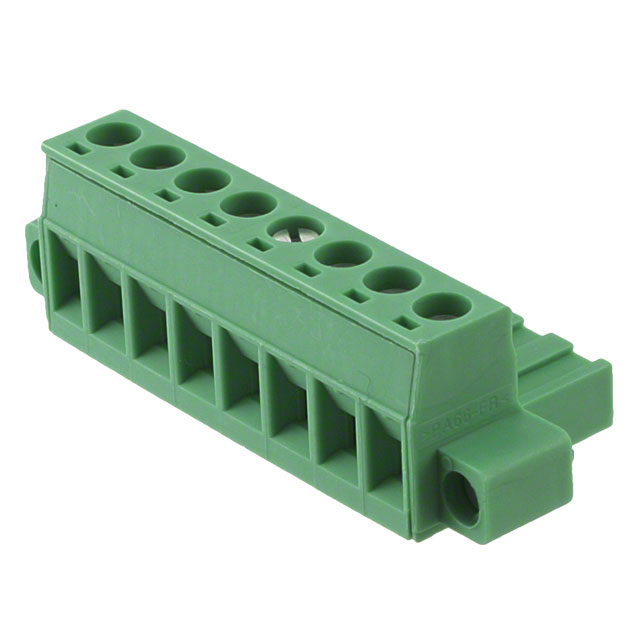

Phoenix Contact 1778043


Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MSTB Polyamide (PA), Nylon Tin Copper

1778043 Overview


It comes in Screw, Socket packaging.The device's mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.It belongs to the COMBICON MSTB Series of products.In addition, there are other features such as UL 94V-0, PA, SAFETY APPROVAL: RS; UL; VDE, to mention only a few.Its Mating Flange feature renders it more powerful in many ways.The part is mounted by Free Hanging, Panel, Plug-In.The supply voltage of this chip should not exceed 250V.This part shares lots of benefits with other Plug, Female Sockets products.

1778043 Features


COMBICON MSTB series


1778043 Applications


There are a lot of Phoenix Contact
1778043 Terminal Blocks applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
