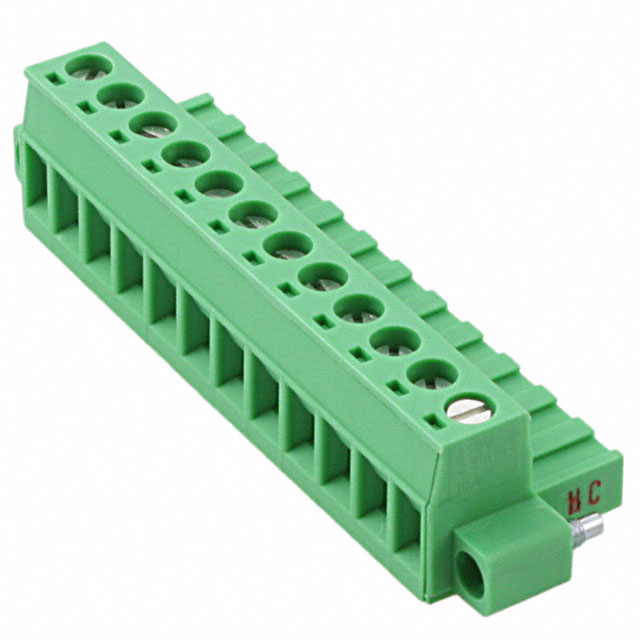

1778085

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Approval Agency :

CB, CSA, VDE, cULus

Wire Gauge or Range - mm² :

0.2-2.5mm2

Series :

COMBICON MSTB

Additional Feature :

UL 94V-0, PA, SAFETY APPROVAL: RS; UL; VDE

Width :

70.97mm

Connector Type :

Screw, Socket

Pitch :

0.200 5.08mm

Material :

Polyamide

Orientation :

RIGHT ANGLE

Wire Gauge or Range - AWG :

12-30 AWG

Safety Approval :

CB; CCA; CSA; CUL; EAC; GL

Type :

Plug, Female Sockets

Flammability Rating :

UL94 V-0

Number of Rows :

1

Contact Plating :

Tin

Number of Decks :

1

ECCN Code :

EAR99

Wire Cross Section :

2.5 mm2

Color :

Green

Current - UL :

15A

Factory Lead Time :

6 Weeks

Depth :

15mm

Number of Levels :

1

Pbfree Code :

yes

RoHS Status :

RoHS Compliant

Housing Material :

Polyamide (PA), Nylon

Current Rating :

12A

Wire Gauge (Max) :

12 AWG

Voltage :

300V

Current :

12A

HTS Code :

8536.69.40.40

Number of Contacts :

12

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)

Weight :

128.999997g

Wire Gauge (Min) :

24 AWG

Packaging :

Bulk

Max Current Rating :

12A

Screw Size :

M3

Number of Ways :

12

Height :

18.2mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material Flammability Rating :

UL94 V-0

Voltage - Rated :

250V

Lead Free :

Lead Free

Published :

2010

Wire Strip Length :

7mm

Length :

15mm

Feature :

Mating Flange

Insulation Height :

0.591 15.00mm

Plug Wire Entry :

180°

Mounting Type :

Free Hanging (In-Line)

Termination :

Screw

Termination Style :

Screw - Rising Cage Clamp

Gender :

FEMALE

Mount :

Free Hanging, Panel, Plug-In

Voltage - IEC :

630V
