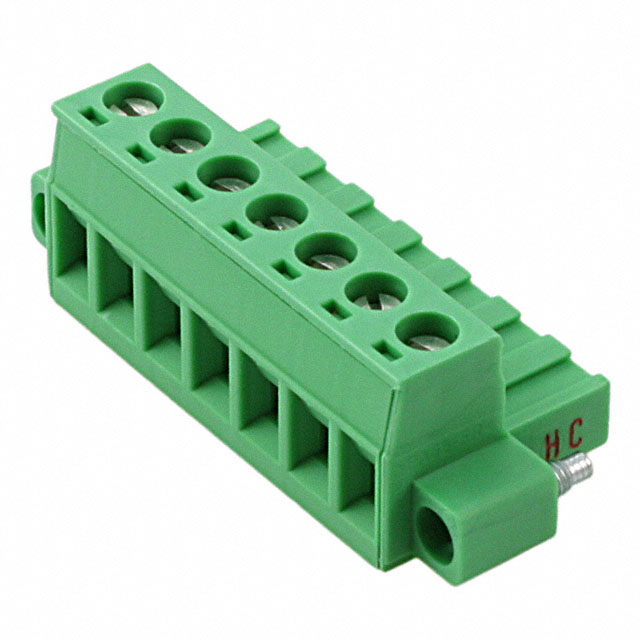

1778030

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Max Supply Voltage :

250V

Current Rating :

12A

Current - UL :

15A

Color :

Green

Material Flammability Rating :

UL94 V-0

Pbfree Code :

yes

Approval Agency :

CB, CSA, VDE, cULus

Wire Strip Length :

7mm

Length :

36.17mm

Height :

18.2mm

Radiation Hardening :

No

Voltage - Rated :

250V

Packaging :

Bulk

Plug Wire Entry :

180°

Number of Contacts :

7

Series :

COMBICON MSTB

Wire Cross Section :

2.5 mm2

Weight :

128.999997g

Mounting Type :

Free Hanging (In-Line)

Number of Levels :

1

HTS Code :

8536.69.40.40

Additional Feature :

PA, 94V-0

Mount :

Free Hanging, Panel, Plug-In

Type :

Plug, Female Sockets

Safety Approval :

UL

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)

Connector Type :

Screw, Socket

Voltage - IEC :

630V

Factory Lead Time :

11 Weeks

Feature :

Mating Flange

Published :

2012

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Flammability Rating :

UL94 V-0

Wire Gauge or Range - mm² :

0.2-2.5mm2

Width :

45.57mm

Gender :

FEMALE

Number of Ways :

7

Number of Rows :

1

Wire Gauge (Min) :

12 AWG

ECCN Code :

EAR99

Contact Plating :

Tin

Screw Size :

M3

Orientation :

RIGHT ANGLE

Max Current Rating :

12A

Wire Gauge (Max) :

30 AWG

Lead Free :

Lead Free

Voltage :

300V

Number of Decks :

1

Pitch :

0.200 5.08mm

Depth :

18.2mm

Wire Gauge or Range - AWG :

12-30 AWG

Insulation Height :

0.591 15.00mm

Termination :

Screw

Current :

12A

Housing Material :

Polyamide (PA), Nylon

RoHS Status :

RoHS Compliant

Material :

Polyamide

Termination Style :

Screw - Rising Cage Clamp
