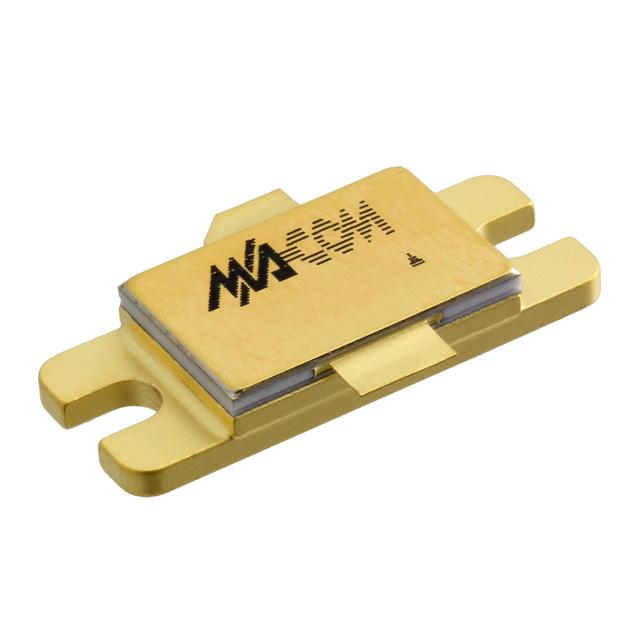

MRF10502

Manufacturer :

MACOM Technology Solutions

Product Category :

Transistors - Bipolar (BJT) - RF

Case Connection :

Base

Element Configuration :

Single

Continuous Collector Current :

29A

DC Current Gain (hFE) (Min) @ Ic, Vce :

20 @ 5A 5V

Collector Emitter Breakdown Voltage :

65V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2009

Radiation Hardening :

No

Terminal Form :

Flat

Mounting Type :

Chassis Mount

Emitter Base Voltage (VEBO) :

3.5V

Packaging :

Tray

JESD-30 Code :

R-CDFM-F2

Factory Lead Time :

20 Weeks

Pin Count :

2

Collector Emitter Voltage (VCEO) :

65V

Number of Pins :

3

hFE Min :

20

Polarity/Channel Type :

NPN

RoHS Status :

ROHS3 Compliant

Terminal Position :

Dual

Additional Feature :

WITH EMITTER BALLASTING RESISTOR

Frequency :

1.15GHz

Max Power Dissipation :

1.46kW

Operating Temperature :

200°C TJ

Transistor Type :

NPN

Transistor Application :

AMPLIFIER

Transistor Element Material :

SILICON

Number of Terminations :

2

Gain :

9dB

Power - Max :

500W

Mount :

Chassis Mount, Screw

Package / Case :

355J-02

Number of Elements :

1

Collector Base Voltage (VCBO) :

65V

Max Collector Current :

29A
