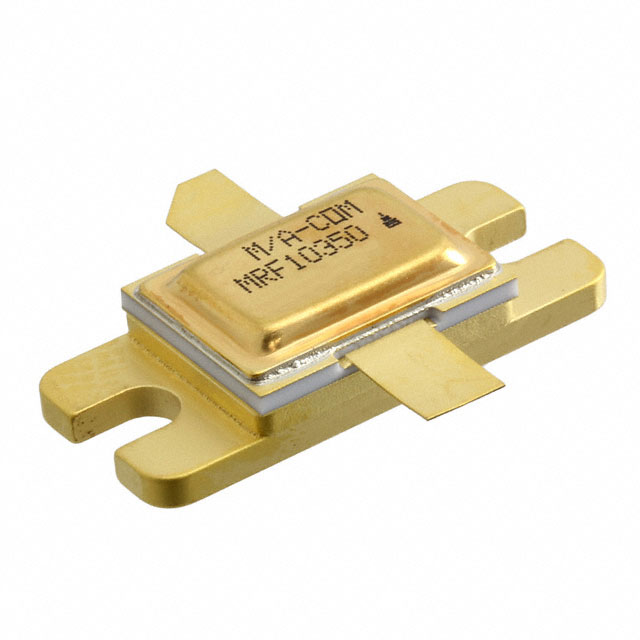

MRF10350

Manufacturer :

MACOM Technology Solutions

Product Category :

Transistors - Bipolar (BJT) - RF

Packaging :

Tray

Factory Lead Time :

14 Weeks

Collector Emitter Breakdown Voltage :

65V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

DC Current Gain (hFE) (Min) @ Ic, Vce :

20 @ 5A 5V

Operating Temperature :

200°C TJ

Transistor Element Material :

SILICON

Gain :

9dB

Terminal Form :

Flat

RoHS Status :

ROHS3 Compliant

Number of Pins :

3

Number of Terminations :

2

Mount :

Chassis Mount

Collector Emitter Voltage (VCEO) :

65V

Additional Feature :

WITH EMITTER BALLASTING RESISTOR

Transistor Application :

AMPLIFIER

Polarity/Channel Type :

NPN

Case Connection :

Base

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Transistor Type :

NPN

Power - Max :

350W

Configuration :

Single

Pin Count :

2

Pbfree Code :

yes

Package / Case :

355E-01

JESD-30 Code :

R-CDFM-F2

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Max Collector Current :

31A

Mounting Type :

Chassis Mount

Collector Base Voltage (VCBO) :

65V

Number of Elements :

1

Qualification Status :

Not Qualified

Terminal Position :

Dual

Published :

2016

Highest Frequency Band :

L B

Max Power Dissipation :

350W
