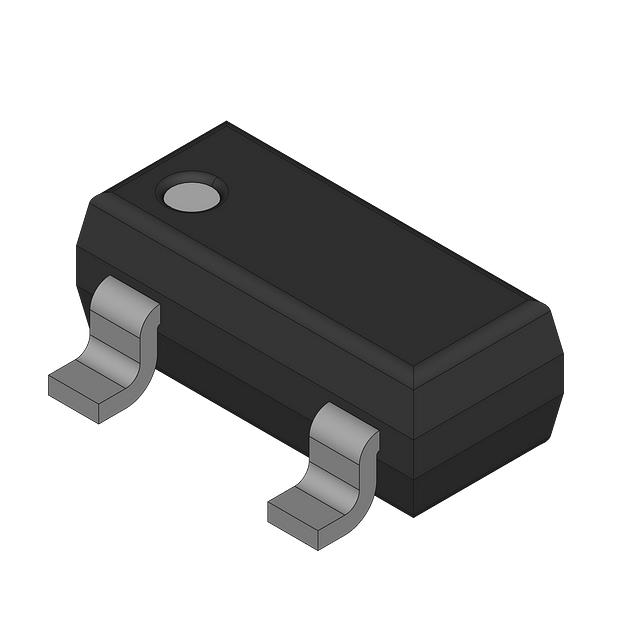

MMBT4354
Or copy the link below:
- Mfr.Part #
- MMBT4354
- Manufacturer
- Fairchild Semiconductor
- Package / Case
- TO-236-3, SC-59, SOT-23-3
- Datasheet
- Download
- Description
- TRANS PNP 60V 0.8A SOT23-3
- Stock
- 11,091
- In Stock ：
- 11,091
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Fairchild Semiconductor
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Emitter Base Voltage (VEBO) :
- -5V
- Terminal Position :
- Dual
- ECCN Code :
- EAR99
- Number of Elements :
- 1
- Collector Emitter Breakdown Voltage :
- 60V
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 50 @ 10mA 5V
- Current - Collector Cutoff (Max) :
- 500nA ICBO
- hFE Min :
- 50
- Height :
- 930μm
- Max Collector Current :
- 800mA
- Mount :
- Surface Mount
- Mounting Type :
- Surface Mount
- Length :
- 2.9mm
- Terminal Finish :
- Tin (Sn)
- Weight :
- 30mg
- Collector Emitter Saturation Voltage :
- -500mV
- Current Rating :
- -800mA
- Width :
- 1.3mm
- Power Dissipation :
- 350mW
- Max Breakdown Voltage :
- 60V
- Number of Pins :
- 3
- Vce Saturation (Max) @ Ib, Ic :
- 500mV @ 50mA, 500mA
- Turn Off Time-Max (toff) :
- 400ns
- Packaging :
- Tape and Reel (TR)
- Lifecycle Status :
- LAST SHIPMENTS (Last Updated: 1 week ago)
- Operating Temperature :
- -55°C~150°C TJ
- Number of Terminations :
- 3
- Lead Free :
- Lead Free
- Base Part Number :
- MMBT4354
- RoHS Status :
- RoHS Compliant
- Transistor Element Material :
- SILICON
- Radiation Hardening :
- No
- Element Configuration :
- Single
- Package / Case :
- TO-236-3, SC-59, SOT-23-3
- Transistor Application :
- SWITCHING
- Voltage - Rated DC :
- -60V
- JESD-609 Code :
- e3
- Polarity/Channel Type :
- PNP
- Terminal Form :
- Gull wing
- Collector Emitter Voltage (VCEO) :
- 60V
- Pbfree Code :
- yes
- Max Power Dissipation :
- 350mW
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Collector Base Voltage (VCBO) :
- -60V
- Published :
- 2003
- Transistor Type :
- PNP
- Datasheets
- MMBT4354
MMBT4354 Documents
PNP -55°C~150°C TJ 500nA ICBO 1 Elements 3 Terminations SILICON PNP TO-236-3, SC-59, SOT-23-3 Tape & Reel (TR) Surface Mount
MMBT4354 Overview
DC current gain in this device equals 50 @ 10mA 5V, which is the ratio of the base current to the collector current.The collector emitter saturation voltage is -500mV, giving you a wide variety of design options.Saturation of VC means the Ic value is at its maximum, so vce saturation (Max) is 500mV @ 50mA, 500mA.An emitter's base voltage can be kept at -5V to gain high efficiency.Current rating refers to the maximum current a fuse can carry for an indefinite period without deteriorating substantially, and this device has a -800mA current rating.Breakdown input voltage is 60V volts.In extreme cases, the collector current can be as low as 800mA volts.
