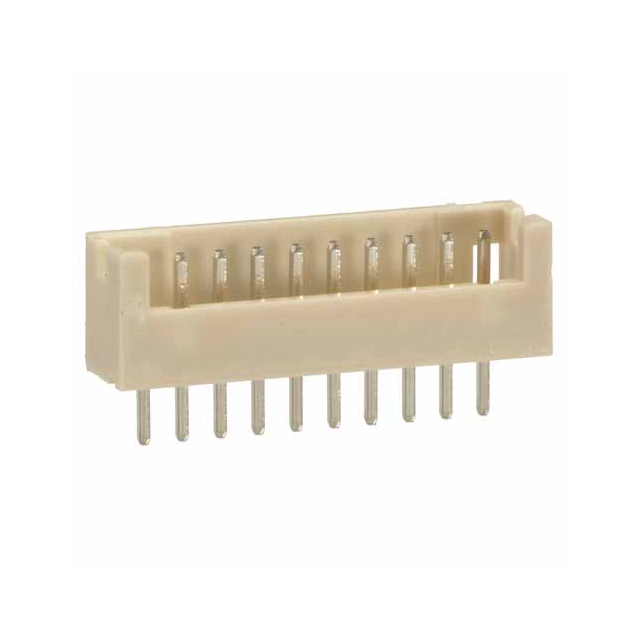

M30-6101046

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

JESD-609 Code :

e3

DIN Conformance :

No

Max Current Rating :

1A

Contact Material :

Brass

Published :

2006

Number of Conductors :

ONE

Connector Type :

Header

Mixed Contacts :

No

Mounting Type :

Through Hole

Insulation Resistance :

1GOhm

Polarization Key :

POLARIZED HOUSING

RoHS Status :

ROHS3 Compliant

Filter Feature :

No

Radiation Hardening :

No

Contact Shape :

Square

MIL Conformance :

No

Gender :

Male

Depth :

3.4mm

Current Rating (Amps) :

1A per Contact

Style :

Board to Cable/Wire

Max Voltage Rating (AC) :

100V

Insulation Material :

Polyamide (PA66), Nylon 6/6

Factory Lead Time :

13 Weeks

Fastening Type :

Detent Lock

Contact Length - Post :

0.091 2.30mm

Pbfree Code :

yes

IEC Conformance :

No

Contact Resistance :

20mOhm

Operating Temperature :

-25°C~85°C

Stack Height (Mating) :

5.4mm

Number of Positions Loaded :

All

Length :

14.15mm

Pitch - Mating :

0.049 1.25mm

Number of Rows :

1

Package / Case :

SIL

Contact Type :

Male Pin

Mating Contact Pitch :

0.049 inch

Insulation Height :

0.169 4.30mm

Current Rating :

1A

Termination :

Solder

Series :

M30

Voltage - Rated AC :

150V

Contact Finish Thickness - Mating :

80.0μin 2.03μm

Packaging :

Bulk

REACH SVHC :

No SVHC

Option :

GENERAL PURPOSE

Contact Finish - Mating :

Tin

Number of Positions :

10

Housing Color :

Natural

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Through Hole

Voltage - Rated DC :

150V

Orientation :

Straight

Material Flammability Rating :

UL94 V-0

UL Flammability Code :

94V-0

Shrouding :

Shrouded - 4 Wall

PCB Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Lead Pitch :

1.25mm

Number Of PCB Rows :

1
