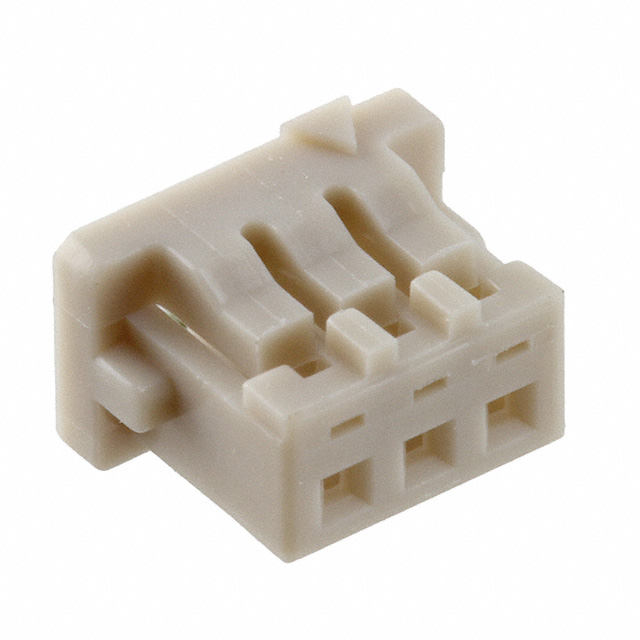

M30-1100300

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Housing Material :

Nylon

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Voltage Rating (AC) :

150V

Packaging :

Bulk

UL Flammability Code :

94V-0

Mount :

Cable, Free Hanging

Factory Lead Time :

13 Weeks

Total Number of Contacts :

3

Depth :

4.1mm

IEC Conformance :

No

RoHS Status :

ROHS3 Compliant

Connector Type :

Receptacle

REACH SVHC :

No SVHC

Rated Current (Signal) :

1A

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Series :

M30

Lead Pitch :

1.25mm

Reference Standard :

UL

Contact Type :

Female Socket

Dielectric Withstanding Voltage :

500VAC V

Filter Feature :

No

Insertion Force-Max :

4.8928 N

Length :

5.4mm

Contact Gender :

FEMALE

Note :

Contacts Not Included

Insulation Resistance :

1GOhm

Number of Conductors :

ONE

Contact Termination :

Crimp

Number of Rows :

1

Weight :

22.679618mg

Pitch :

0.049 1.25mm

Published :

2001

Width :

3.4mm

Body/Shell Style :

PLUG

Voltage - Rated DC :

150V

Color :

Natural

Number of Poles :

3

Current Rating :

1A

Working Voltage :

150V

Mounting Type :

Free Hanging (In-Line)

Voltage - Rated AC :

150V

Max Operating Temperature :

85°C

Pbfree Code :

yes

Max Current Rating :

1A

Polarization Key :

POLARIZED HOUSING

Radiation Hardening :

No

Package / Case :

SIL

Mixed Contacts :

No

Reliability :

COMMERCIAL

Option :

WITH CABLE ASSEMBLY

Orientation :

Straight

MIL Conformance :

No

Min Operating Temperature :

-55°C

DIN Conformance :

No
