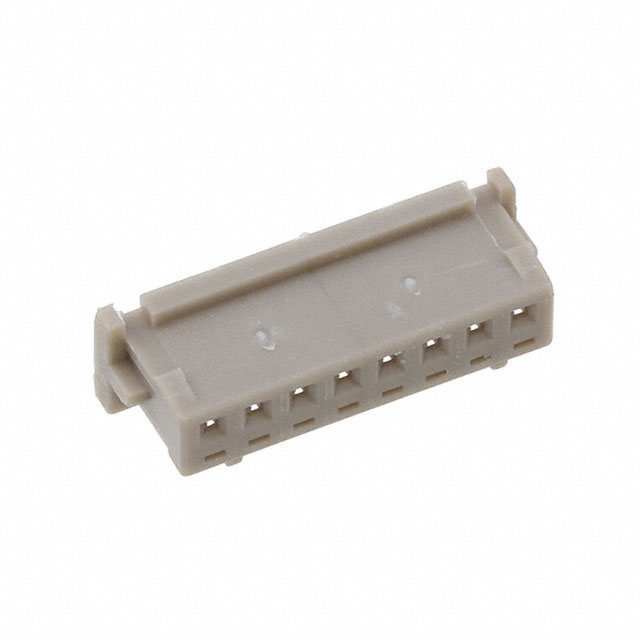

M30-1100800

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Depth :

4.1mm

UL Flammability Code :

94V-0

Contact Type :

Female Socket

Package / Case :

SIL

Contact Gender :

FEMALE

Number of Positions :

8

Series :

M30

Option :

WITH CABLE ASSEMBLY

DIN Conformance :

No

Current Rating :

1A

Min Operating Temperature :

-55°C

Housing Material :

Nylon

Polarization Key :

POLARIZED HOUSING

Rated Current (Signal) :

1A

Insulation Resistance :

1GOhm

Dielectric Withstanding Voltage :

500VAC V

Mount :

Cable, Free Hanging

Pitch :

0.049 1.25mm

Connector Type :

Receptacle

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Resistance :

30mOhm

Width :

3.4mm

Reliability :

COMMERCIAL

Pbfree Code :

yes

Body/Shell Style :

PLUG

Factory Lead Time :

13 Weeks

Total Number of Contacts :

8

Number of Rows :

1

Max Current Rating :

1A

RoHS Status :

ROHS3 Compliant

IEC Conformance :

No

Lead Pitch :

1.25mm

REACH SVHC :

No SVHC

Radiation Hardening :

No

Note :

Contacts Not Included

Max Operating Temperature :

85°C

Weight :

75.012838mg

Reference Standard :

UL

Length :

11.65mm

Mounting Type :

Free Hanging (In-Line)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Termination :

Crimp

Number of Conductors :

ONE

Voltage - Rated AC :

150V

Filter Feature :

No

Voltage - Rated DC :

150V

MIL Conformance :

No

Packaging :

Bulk

Published :

2011

Contact Material :

Phosphor Bronze

ECCN Code :

EAR99

Max Voltage Rating (AC) :

150V

Color :

Natural

Mixed Contacts :

No

Orientation :

Straight
