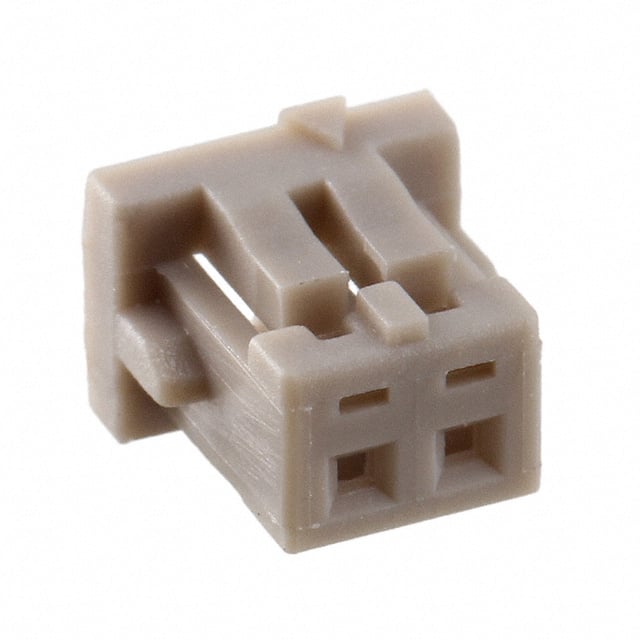

M30-1100200

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Max Voltage Rating (AC) :

150V

Contact Finish - Mating :

NOT SPECIFIED

Color :

Natural

Series :

M30

Pbfree Code :

yes

Factory Lead Time :

13 Weeks

REACH SVHC :

No SVHC

Number of Positions :

2

Housing Material :

Nylon

Polarization Key :

POLARIZED HOUSING

DIN Conformance :

No

Reference Standard :

UL

Insulation Resistance :

500000000Ohm

Package / Case :

SIL

Max Operating Temperature :

85°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

NOT SPECIFIED

Depth :

4.1mm

Note :

Contacts Not Included

Mounting Type :

Free Hanging (In-Line)

Dielectric Withstanding Voltage :

500VAC V

RoHS Status :

ROHS3 Compliant

MIL Conformance :

No

Min Operating Temperature :

-55°C

Orientation :

Straight

Length :

4.15mm

Connector Type :

Receptacle

Pitch :

0.049 1.25mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Type :

Female Socket

Mixed Contacts :

No

Rated Current (Signal) :

1A

Option :

WITH CABLE ASSEMBLY

IEC Conformance :

No

UL Flammability Code :

94V-0

Max Current Rating :

1A

Contact Gender :

FEMALE

Body/Shell Style :

PLUG

Mount :

Free Hanging

Contact Termination :

Crimp

Reliability :

COMMERCIAL

Total Number of Contacts :

2

Published :

2013

Packaging :

Bulk

Number of Rows :

1

Contact Resistance :

30mOhm

Number of Conductors :

ONE

Filter Feature :

No
