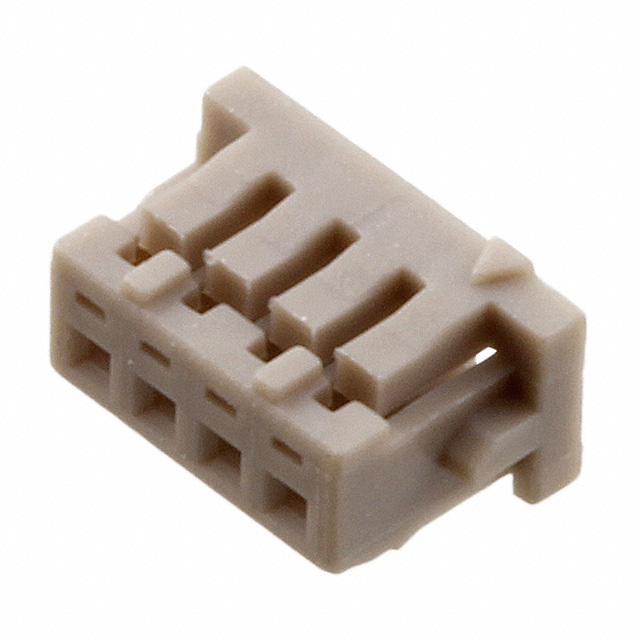

M30-1100400

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Polarization Key :

POLARIZED HOUSING

Max Current Rating :

1A

Reference Standard :

UL

Published :

2011

Note :

Contacts Not Included

Series :

M30

Radiation Hardening :

No

Number of Conductors :

ONE

Contact Termination :

Crimp

Contact Gender :

FEMALE

Mounting Type :

Free Hanging (In-Line)

Voltage - Rated DC :

150V

Total Number of Contacts :

4

Mixed Contacts :

No

Width :

3.4mm

Housing Material :

Nylon

Dielectric Withstanding Voltage :

500VAC V

MIL Conformance :

No

Length :

6.65mm

Pitch :

0.049 1.25mm

IEC Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Resistance :

1GOhm

Color :

Natural

Reliability :

COMMERCIAL

Orientation :

Straight

Pbfree Code :

yes

Body/Shell Style :

PLUG

Max Voltage Rating (AC) :

150V

Filter Feature :

No

Rated Current (Signal) :

1A

Connector Type :

Receptacle

REACH SVHC :

No SVHC

Depth :

4.1mm

Option :

WITH CABLE ASSEMBLY

Packaging :

Bulk

Lead Pitch :

2.5mm

Package / Case :

SIL

Voltage - Rated AC :

150V

Number of Positions :

4

Current Rating :

1A

Contact Resistance :

30mOhm

Number of Rows :

1

Factory Lead Time :

13 Weeks

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

DIN Conformance :

No

RoHS Status :

ROHS3 Compliant

Max Operating Temperature :

85°C

Contact Type :

Female Socket

Mount :

Cable, Free Hanging

Min Operating Temperature :

-55°C
