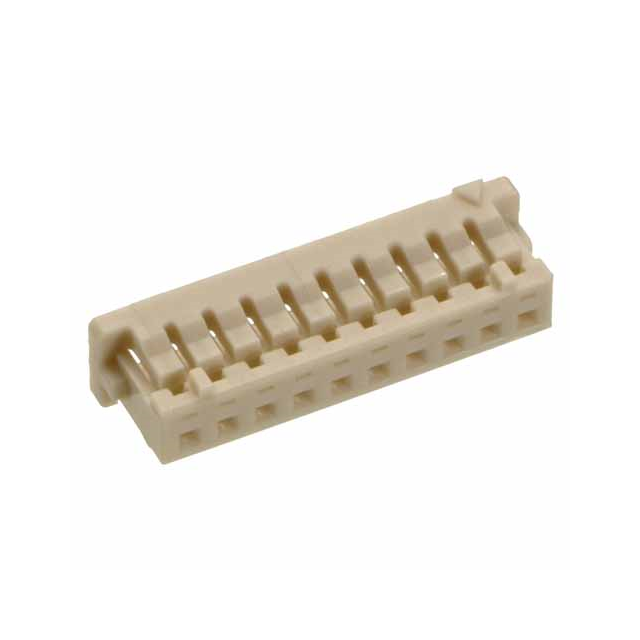

M30-1101100

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

ECCN Code :

EAR99

Rated Current (Signal) :

1A

Mixed Contacts :

No

Connector Type :

Receptacle

Pbfree Code :

yes

Insulation Resistance :

500000000Ohm

Note :

Contacts Not Included

Total Number of Contacts :

11

Package / Case :

SIL

Published :

2013

Packaging :

Bulk

Polarization Key :

POLARIZED HOUSING

Number of Rows :

1

Color :

Natural

Mounting Type :

Free Hanging (In-Line)

Option :

GENERAL PURPOSE

HTS Code :

8536.69.40.40

Pitch :

0.049 1.25mm

Mount :

Free Hanging

Insulation Material :

Nylon

Number of Positions :

11

Series :

M30

Contact Resistance :

30mOhm

Contact Design :

PREASSEM CONN

Dielectric Withstanding Voltage :

500VAC V

Contact Material :

Phosphor Bronze

Filter Feature :

No

RoHS Status :

ROHS3 Compliant

Contact Finish - Mating :

NOT SPECIFIED

Factory Lead Time :

13 Weeks

Body/Shell Style :

PLUG

Contact Type :

Female Socket

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

UL Flammability Code :

94V-0

Reference Standard :

UL

Contact Termination :

Crimp

MIL Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature (Max) :

85°C

IEC Conformance :

No

Insertion Force-Max :

4.8928 N

DIN Conformance :

No

Reliability :

COMMERCIAL

Operating Temperature (Min) :

-25°C
