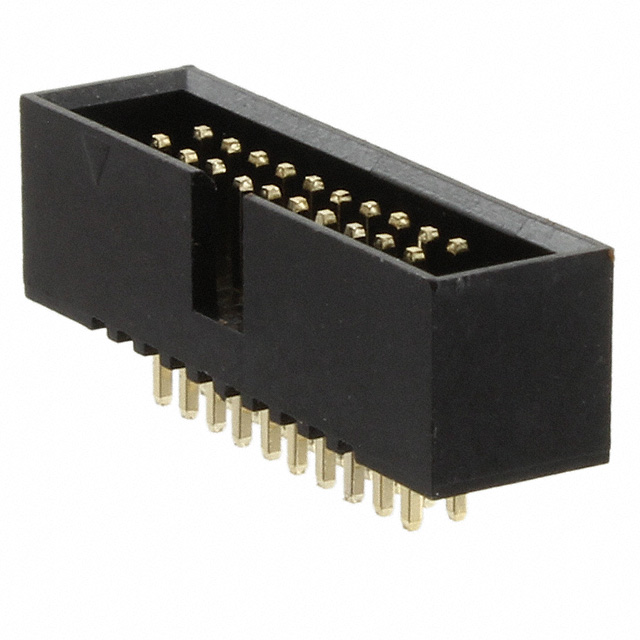

3220-20-0100-00
Or copy the link below:
- Mfr.Part #
- 3220-20-0100-00
- Manufacturer
- CnC Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 20POS 1.27MM
- Stock
- 6,504
- In Stock ：
- 6,504
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CnC Tech
- Product Category :
- Headers, Male Pins
- Pitch - Mating :
- 0.050 1.27mm
- Shrouding :
- Shrouded - 4 Wall
- Published :
- 2014
- Contact Length - Post :
- 0.083 2.11mm
- Number of Positions :
- 20
- Style :
- Board to Cable/Wire
- Packaging :
- Tray
- Number of Rows :
- 2
- Contact Finish Thickness - Mating :
- Flash
- Insulation Height :
- 0.213 5.40mm
- Mounting Type :
- Through Hole
- Contact Shape :
- Square
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Mount :
- Through Hole
- Termination :
- Solder
- Factory Lead Time :
- 18 Weeks
- Number of Positions Loaded :
- All
- Feature :
- Keying Slot
- Current Rating (Amps) :
- 1A
- Connector Type :
- Header
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- Contact Type :
- Male Pin
- Contact Finish - Mating :
- Gold
- RoHS Status :
- ROHS3 Compliant
- Fastening Type :
- Push-Pull
- Contact Material :
- Brass
- Material Flammability Rating :
- UL94 V-0
- Insulation Material :
- Polyamide (PA6T), Nylon 6T
- Operating Temperature :
- -40°C~105°C
- Datasheets
- 3220-20-0100-00
2-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA6T), Nylon 6T 20-Position Board to Cable/Wire 0.213 5.40mm Height
3220-20-0100-00 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Tray case is used.It is more powerful in many ways due to its Keying Slot feature.It is mounted by Through Hole.It operates at an operating temperature of -40°C~105°C.
3220-20-0100-00 Features
3220-20-0100-00 Applications
There are a lot of CNC Tech
3220-20-0100-00 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
