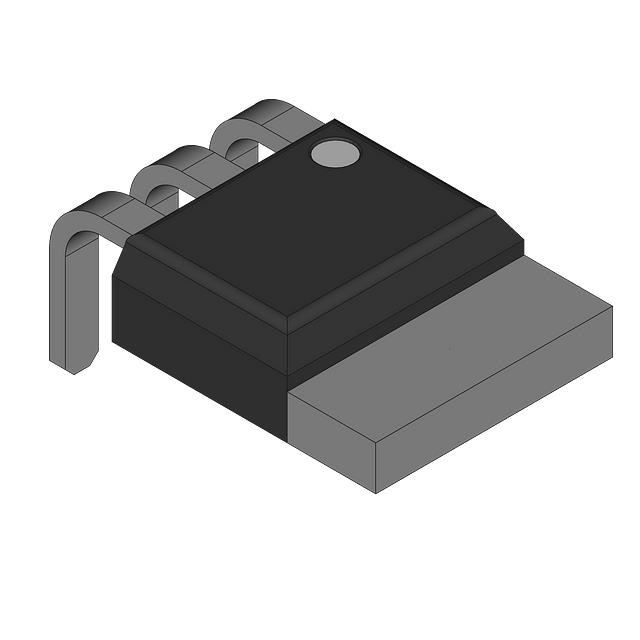

FDU8778
Or copy the link below:
- Mfr.Part #
- FDU8778
- Manufacturer
- Fairchild Semiconductor
- Package / Case
- TO-251-3 Short Leads, IPak, TO-251AA
- Datasheet
- Download
- Description
- MOSFET N-CH 25V 35A IPAK
- Stock
- 300
- In Stock ：
- 300
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Fairchild Semiconductor
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Technology :
- MOSFET (Metal Oxide)
- FET Type :
- N-Channel
- Power Dissipation (Max) :
- 39W (Tc)
- Product Status :
- Obsolete
- Mounting Type :
- Through Hole
- Gate Charge (Qg) (Max) @ Vgs :
- 18 nC @ 10 V
- Vgs(th) (Max) @ Id :
- 2.5V @ 250μA
- Current - Continuous Drain (Id) @ 25°C :
- 35A (Tc)
- Package / Case :
- TO-251-3 Short Leads, IPak, TO-251AA
- Vgs (Max) :
- ±20V
- Package :
- Tube
- Drive Voltage (Max Rds On, Min Rds On) :
- 4.5V, 10V
- FET Feature :
- -
- Series :
- PowerTrench®
- Input Capacitance (Ciss) (Max) @ Vds :
- 845 pF @ 13 V
- Operating Temperature :
- -55°C ~ 175°C (TJ)
- Rds On (Max) @ Id, Vgs :
- 14mOhm @ 35A, 10V
- Supplier Device Package :
- I-PAK
- Drain to Source Voltage (Vdss) :
- 25 V
- Datasheets
- FDU8778
MOSFET (Metal Oxide) N-Channel 14mOhm @ 35A, 10V ±20V 845 pF @ 13 V 18 nC @ 10 V 25 V TO-251-3 Short Leads, IPak, TO-251AA
FDU8778 Overview
As an op amp's input capacitance parameter, CI, is defined as the capacitance between the input terminals when one input is grounded, this device's maximum input capacitance is 845 pF @ 13 V.This transistor requires a drain-source voltage (Vdss) of 25 V.
FDU8778 Features
a 25 V drain to source voltage (Vdss)
FDU8778 Applications
There are a lot of Fairchild Semiconductor
FDU8778 applications of single MOSFETs transistors.
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
- Battery Protection Circuit
- Telecom 1 Sever Power Supplies
- Industrial Power Supplies
- PFC stages, hard switching PWM stages and resonant switching
