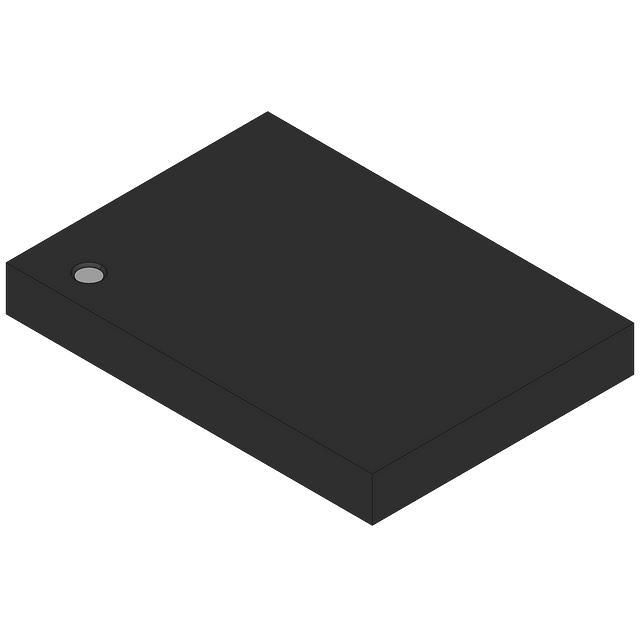

FDMA7628

Manufacturer :

Fairchild Semiconductor

Product Category :

Transistors - FETs, MOSFETs - Single

Mount :

Surface Mount

Width :

2mm

Vgs(th) (Max) @ Id :

1V @ 250μA

Power Dissipation :

1.9W

Mounting Type :

Surface Mount

Rds On (Max) @ Id, Vgs :

14.5m Ω @ 9.4A, 4.5V

Drain to Source Breakdown Voltage :

20V

JESD-609 Code :

e4

Pbfree Code :

yes

Operating Mode :

ENHANCEMENT MODE

Weight :

30mg

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Gate to Source Voltage (Vgs) :

8V

Continuous Drain Current (ID) :

9.4A

HTS Code :

8541.29.00.95

Rise Time :

11ns

Turn On Delay Time :

9 ns

Height :

750μm

Case Connection :

DRAIN

Vgs (Max) :

±8V

Gate Charge (Qg) (Max) @ Vgs :

17.5nC @ 4.5V

Lifecycle Status :

LAST SHIPMENTS (Last Updated: 4 days ago)

Published :

2009

Number of Pins :

6

Transistor Application :

SWITCHING

Drive Voltage (Max Rds On,Min Rds On) :

1.5V 4.5V

Drain-source On Resistance-Max :

0.0145Ohm

Transistor Element Material :

SILICON

Length :

2mm

Current - Continuous Drain (Id) @ 25°C :

9.4A Ta

Turn-Off Delay Time :

37 ns

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Feedback Cap-Max (Crss) :

185 pF

Terminal Position :

Dual

FET Type :

N-Channel

Radiation Hardening :

No

Number of Elements :

1

Series :

PowerTrench®

Input Capacitance (Ciss) (Max) @ Vds :

1680pF @ 10V

Packaging :

Tape and Reel (TR)

Number of Terminations :

6

Power Dissipation-Max :

1.9W Ta

Package / Case :

6-WDFN Exposed Pad

ECCN Code :

EAR99

Element Configuration :

Single

Fall Time (Typ) :

11 ns

RoHS Status :

RoHS Compliant

Operating Temperature :

-55°C~150°C TJ
