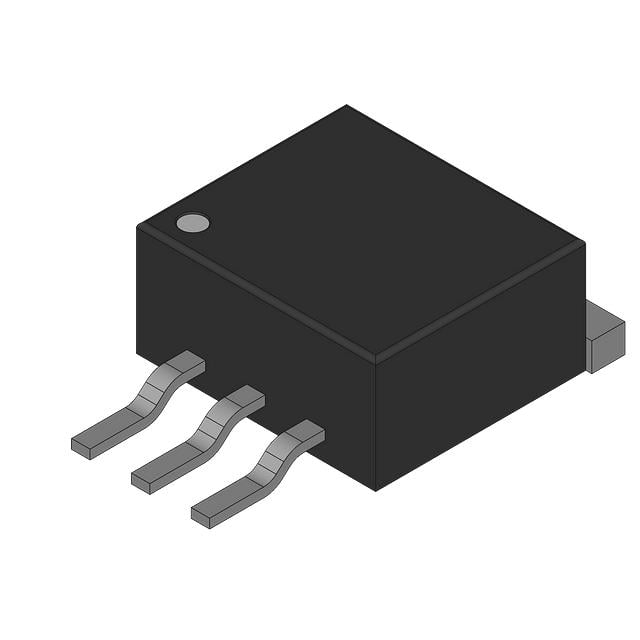

FDD6685

Manufacturer :

Fairchild Semiconductor

Product Category :

Transistors - FETs, MOSFETs - Single

Current - Continuous Drain (Id) @ 25°C :

11A Ta 40A Tc

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Radiation Hardening :

No

Number of Terminations :

2

Lead Free :

Lead Free

Drive Voltage (Max Rds On,Min Rds On) :

4.5V 10V

Packaging :

Tape and Reel (TR)

Termination :

SMD/SMT

Gate to Source Voltage (Vgs) :

25V

Lifecycle Status :

ACTIVE (Last Updated: 17 hours ago)

Pbfree Code :

yes

Width :

6.22mm

Transistor Application :

SWITCHING

Mount :

Surface Mount

Weight :

260.37mg

Terminal Form :

Gull wing

Number of Pins :

3

Operating Temperature :

-55°C~175°C TJ

Height :

2.39mm

Turn On Delay Time :

17 ns

Length :

6.73mm

Contact Plating :

Tin

Nominal Vgs :

1.8 V

Number of Elements :

1

Factory Lead Time :

10 Weeks

Turn-Off Delay Time :

43 ns

Vgs (Max) :

±25V

Series :

PowerTrench®

ECCN Code :

EAR99

Case Connection :

DRAIN

JESD-30 Code :

R-PSSO-G2

Operating Mode :

ENHANCEMENT MODE

Rds On (Max) @ Id, Vgs :

20m Ω @ 11A, 10V

Threshold Voltage :

-1.8V

Package / Case :

TO-252-3, DPak (2 Leads + Tab), SC-63

Power Dissipation-Max :

52W Ta

Drain to Source Breakdown Voltage :

-30V

Power Dissipation :

52W

Input Capacitance (Ciss) (Max) @ Vds :

1715pF @ 15V

Dual Supply Voltage :

30V

Transistor Element Material :

SILICON

Rise Time :

11ns

Element Configuration :

Single

Gate Charge (Qg) (Max) @ Vgs :

24nC @ 5V

Vgs(th) (Max) @ Id :

3V @ 250µA

REACH SVHC :

No SVHC

Continuous Drain Current (ID) :

-40A

FET Type :

P-Channel

Current Rating :

-40A

Voltage - Rated DC :

-30V

Resistance :

20mOhm

Fall Time (Typ) :

21 ns

Published :

2004

RoHS Status :

ROHS3 Compliant

Mounting Type :

Surface Mount
