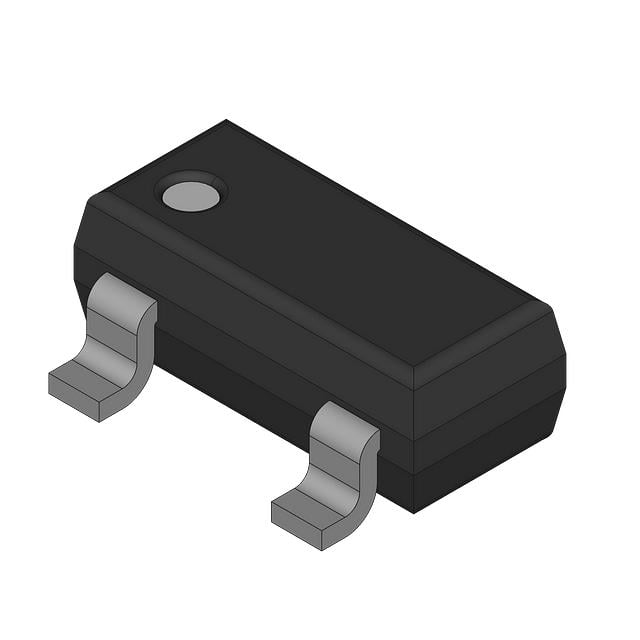

BCW61B,215

Manufacturer :

NXP Semiconductors

Product Category :

Transistors - Bipolar (BJT) - Single

Transistor Element Material :

SILICON

Terminal Form :

Gull wing

Power - Max :

250mW

VCEsat-Max :

0.55 V

JESD-30 Code :

R-PDSO-G3

Turn Off Time-Max (toff) :

800ns

Transition Frequency :

100MHz

ECCN Code :

EAR99

Package / Case :

TO-236-3, SC-59, SOT-23-3

Qualification Status :

Not Qualified

HTS Code :

8541.21.00.95

Transistor Type :

PNP

Base Part Number :

BCW61

Number of Elements :

1

Pin Count :

3

Peak Reflow Temperature (Cel) :

260

DC Current Gain (hFE) (Min) @ Ic, Vce :

180 @ 2mA 5V

Configuration :

Single

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Surface Mount

Additional Feature :

LOW NOISE

Voltage - Collector Emitter Breakdown (Max) :

32V

Series :

Automotive, AEC-Q101

Current - Collector Cutoff (Max) :

20nA ICBO

Transistor Application :

SWITCHING

JESD-609 Code :

e3

Polarity/Channel Type :

PNP

Current - Collector (Ic) (Max) :

100mA

Terminal Position :

Dual

Number of Terminations :

3

Operating Temperature :

150°C TJ

Surface Mount :

yes

Turn On Time-Max (ton) :

150ns

Time@Peak Reflow Temperature-Max (s) :

40

Frequency - Transition :

100MHz

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

4 Weeks

Terminal Finish :

Tin (Sn)

Vce Saturation (Max) @ Ib, Ic :

550mV @ 1.25mA, 50mA

Published :

2009

Packaging :

Tape and Reel (TR)
