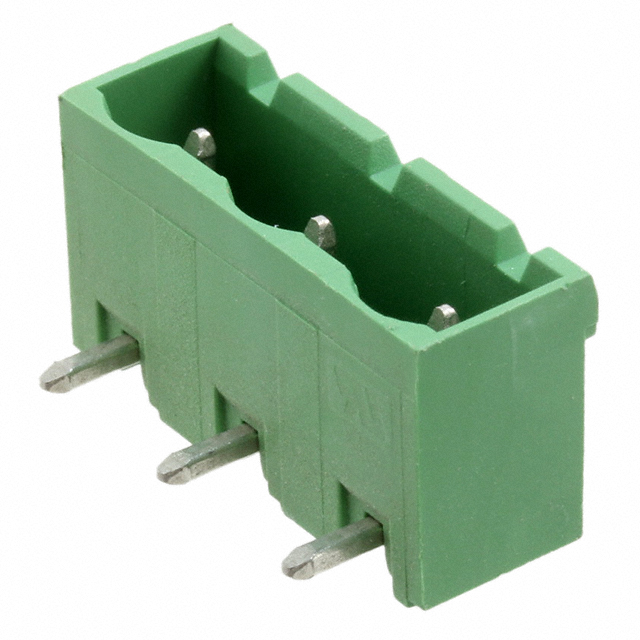

282966-3
Or copy the link below:
- Mfr.Part #
- 282966-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 3POS 90DEG 7.62MM
- Stock
- 600
- In Stock ：
- 600
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Contact Plating :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 1
- RoHS Status :
- RoHS Compliant
- Current :
- 15A
- Number of Positions :
- 3
- Header Orientation :
- 90°, Right Angle
- Packaging :
- Bulk
- Voltage :
- 300V
- Series :
- Buchanan
- Contact Tail Length :
- 0.138 3.50mm
- Color :
- Green
- Material Flammability Rating :
- UL94 V-0
- Depth :
- 12mm
- Published :
- 2007
- Termination Style :
- Solder
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Number of Levels :
- 1
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- ELV :
- Compliant
- Max Voltage Rating (AC) :
- 300V
- Orientation :
- RIGHT ANGLE
- Voltage - UL :
- 300V
- Length - Tail :
- 3.5mm
- Contact Material :
- COPPER ALLOY
- Mount :
- Through Hole
- Min Operating Temperature :
- -40°C
- Number of Positions Per Level :
- 3
- Length :
- 22.06mm
- Pitch :
- 0.300 7.62mm
- Housing Color :
- Green
- Current - UL :
- 15A
- Mounting Type :
- Through Hole
- Termination :
- Solder
- Operating Temperature :
- -40°C~110°C
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Number of Contacts :
- 3
- Connector Type :
- Header
- Contact Mating Finish :
- Tin
- Max Current Rating :
- 15A
- Flammability Rating :
- UL94 V-0
- Radiation Hardening :
- No
- Shrouding :
- yes
- Voltage - Rated :
- 300V
- Positions Per Level :
- 3
- Factory Lead Time :
- 12 Weeks
- Max Operating Temperature :
- 105°C
- Insulation Height :
- 0.329 8.36mm
- Datasheets
- 282966-3
Bulk 0.300 7.62mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
282966-3 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.A temperature below 105°C is best for using it.The device must run at -40°C degrees.Through Hole represents the mounting point for the part.-40°C~110°C Operating Temperature is the default operating temperature for the device.As with other Header, Male Pins, Shrouded (4 Side) products, this part also offers a wide range of benefits.
282966-3 Features
Buchanan series
282966-3 Applications
There are a lot of TE Connectivity AMP Connectors
282966-3 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
