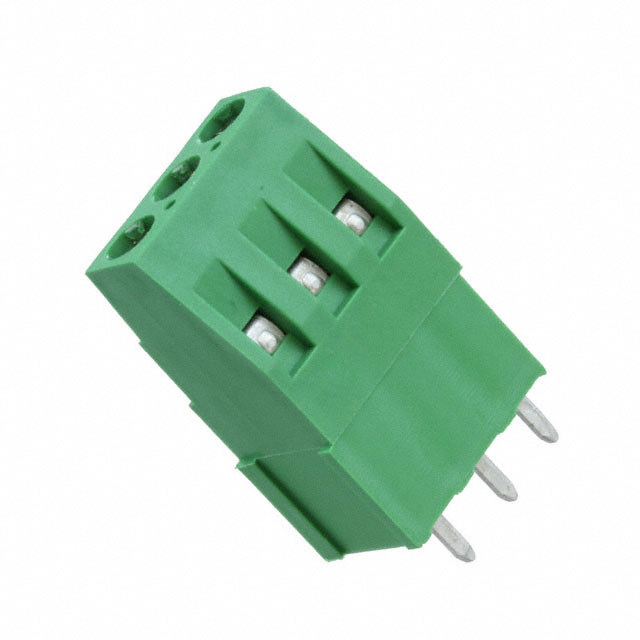

282901-3
Or copy the link below:
- Mfr.Part #
- 282901-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3P SIDE ENT 5.08MM PCB
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Feature :
- Interlocking (Side), Mid Wire Entry Level
- Termination :
- Screw
- Voltage - Rated :
- 300V
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Operating Temperature :
- -40°C~105°C
- Current Rating :
- 17.5A
- Connector Type :
- Receptacle
- Wire Gauge :
- 12-30 AWG
- Factory Lead Time :
- 13 Weeks
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Safety Approval :
- UL
- Length - Tail :
- 3.81mm
- Number of Levels :
- 1
- Max Current Rating :
- 17.5A
- Wire Gauge (Min) :
- 12 AWG
- Mount :
- Through Hole
- Packaging :
- Bulk
- Contact Plating :
- Tin
- Number of Decks :
- 1
- Contact Material :
- Brass
- Clamp Material - Plating :
- Brass - Nickel Plated
- RoHS Status :
- RoHS Compliant
- Number of Rows :
- 1
- Published :
- 2007
- Mounting Type :
- Through Hole
- ECCN Code :
- EAR99
- Orientation :
- Straight
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch :
- 0.200 5.08mm
- ELV :
- Compliant
- Screw Thread :
- M3
- Wire Gauge (Max) :
- 30 AWG
- Radiation Hardening :
- No
- Color :
- Green
- Number of Ways :
- 3
- Contact Material - Plating :
- Brass - Tin Plated
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Wire Cross Section :
- 2.5 mm2
- Wire Termination :
- Screw - Rising Cage Clamp
- Series :
- Buchanan
- Flammability Rating :
- UL94 V-0
- Additional Feature :
- PA66, 94V-0
- Number of Contacts :
- 3
- Mating Orientation :
- Horizontal with Board
- Screw Material - Plating :
- Brass - Nickel Plated
- Datasheets
- 282901-3
0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
282901-3 Overview
The packaging contains Receptacle.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Buchanan belongs to the Buchanan Series.Further, there are features such as PA66, 94V-0, to name only a few.In many ways, it is more powerful due to its Interlocking (Side), Mid Wire Entry Level feature.There is a Through Hole mount on the part.This device operates at a temperature of -40°C~105°C.
282901-3 Features
Buchanan series
282901-3 Applications
There are a lot of TE Connectivity AMP Connectors
282901-3 Terminal Blocks applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
