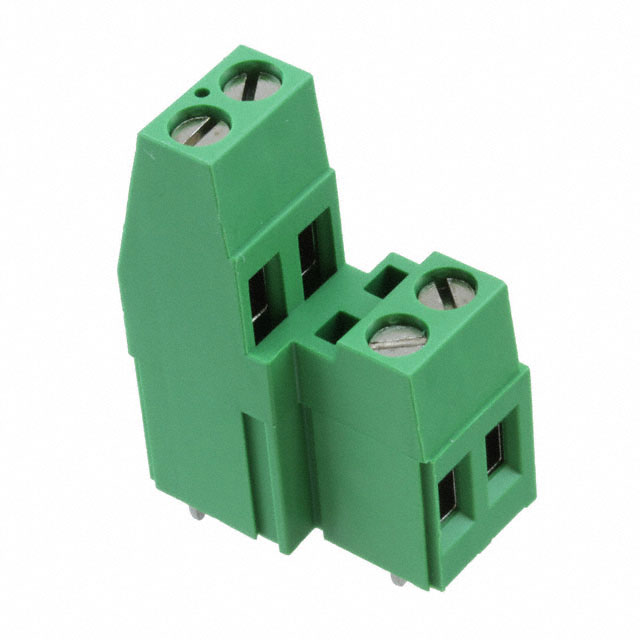

282909-2
Or copy the link below:
- Mfr.Part #
- 282909-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 2P SIDE ENT 5.08MM PCB
- Stock
- 89
- In Stock ：
- 89
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Connector Type :
- Receptacle
- Max Current Rating :
- 24A
- Contact Material :
- Brass
- Termination :
- Screw
- Number of Levels :
- 2
- Number of Rows :
- 2
- ELV :
- Compliant
- Wire Termination :
- Screw - Rising Cage Clamp
- Max Operating Temperature :
- 105°C
- Factory Lead Time :
- 13 Weeks
- Housing Color :
- Green
- Color :
- Green
- Length - Tail :
- 3.9878mm
- Series :
- Buchanan
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Thread Size :
- M3
- Radiation Hardening :
- No
- Number of Contacts :
- 2
- Mount :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Positions Per Level :
- 2
- Wire Gauge (Max) :
- 30 AWG
- Voltage :
- 300V
- Pitch :
- 0.200 5.08mm
- Number of Positions Per Level :
- 2
- Wire Gauge :
- 12-30 AWG
- Flammability Rating :
- UL94 V-0
- Number of Positions :
- 2
- Operating Temperature :
- -40°C~105°C
- Contact Plating :
- Tin
- Clamp Material - Plating :
- Brass - Nickel Plated
- Min Operating Temperature :
- -40°C
- Current Rating :
- 24A
- Feature :
- Interlocking (Side)
- Voltage - Rated :
- 300V
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Published :
- 2007
- Screw Thread :
- M3
- Screw Material - Plating :
- Brass - Nickel Plated
- Wire Gauge (Min) :
- 12 AWG
- Contact Material - Plating :
- Brass - Tin Plated
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Plating :
- Brass
- Orientation :
- Straight
- Current :
- 24A
- Mounting Type :
- Through Hole
- Mating Orientation :
- Horizontal with Board
- Datasheets
- 282909-2
0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 2 Levels 12-30 AWG Buchanan
282909-2 Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.A temperature below 105°C is best for using it.The device must run at -40°C degrees.A number of features make the Interlocking (Side) feature more powerful.Through Hole represents the mounting point for the part.-40°C~105°C Operating Temperature is the default operating temperature for the device.
282909-2 Features
Buchanan series
282909-2 Applications
There are a lot of TE Connectivity AMP Connectors
282909-2 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
