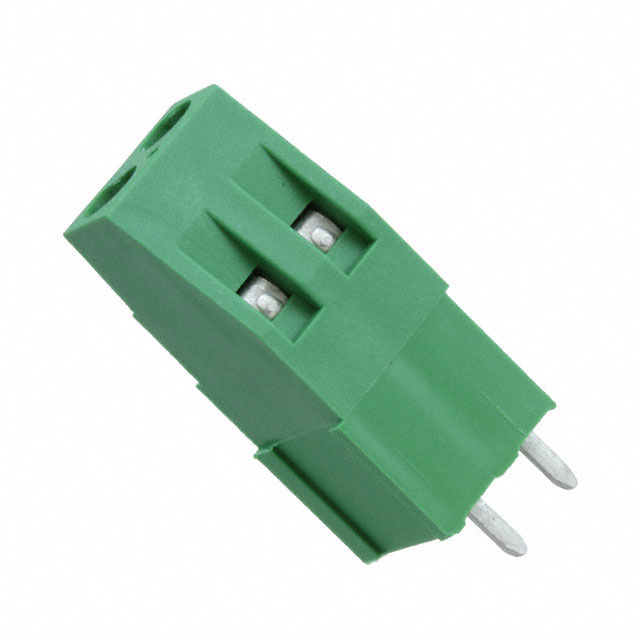

282901-2
Or copy the link below:
- Mfr.Part #
- 282901-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 2P SIDE ENT 5.08MM PCB
- Stock
- 1,030
- In Stock ：
- 1,030
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Number of Levels :
- 1
- Number of Decks :
- 1
- Length :
- 10.76mm
- Wire Gauge (Min) :
- 12 AWG
- Wire Gauge (Max) :
- 30 AWG
- Mating Orientation :
- Horizontal with Board
- Max Current Rating :
- 17.5A
- Number of Contacts :
- 2
- HTS Code :
- 8536.69.40.40
- Flammability Rating :
- UL94 V-0
- Pitch :
- 0.200 5.08mm
- Series :
- Buchanan
- Termination :
- Solder
- Additional Feature :
- PA66, 94V-0
- Radiation Hardening :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Wire Termination :
- Screw - Rising Cage Clamp
- Contact Material - Plating :
- Brass - Tin Plated
- Published :
- 2007
- Current Rating :
- 17.5A
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Operating Temperature :
- -40°C~105°C
- Factory Lead Time :
- 13 Weeks
- Mounting Type :
- Through Hole
- Voltage - Rated :
- 300V
- Orientation :
- Straight
- Screw Material - Plating :
- Brass - Nickel Plated
- Feature :
- Interlocking (Side), Mid Wire Entry Level
- Max Voltage Rating (AC) :
- 300V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Clamp Material - Plating :
- Brass - Nickel Plated
- Connector Type :
- Receptacle
- Safety Approval :
- UL
- ELV :
- Compliant
- Packaging :
- Bulk
- Contact Plating :
- Tin
- Contact Material :
- Brass
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Mount :
- Through Hole
- Length - Tail :
- 3.81mm
- RoHS Status :
- RoHS Compliant
- Screw Thread :
- M3
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Number of Ways :
- 2
- Max Supply Voltage (AC) :
- 300V
- Wire Gauge :
- 12-30 AWG
- Color :
- Green
- Depth :
- 10.2mm
- Number of Rows :
- 1
- ECCN Code :
- EAR99
- Datasheets
- 282901-2
0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
282901-2 Overview
Packaging is Receptacle.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Buchanan Series, it can be found in this category.There are also other features such as PA66, 94V-0, to name only a few.With its Interlocking (Side), Mid Wire Entry Level feature, it is more powerful in many ways.In this case, Through Hole mounts the part.The device is operating at -40°C~105°C Operating Temperature.
282901-2 Features
Buchanan series
282901-2 Applications
There are a lot of TE Connectivity AMP Connectors
282901-2 Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
