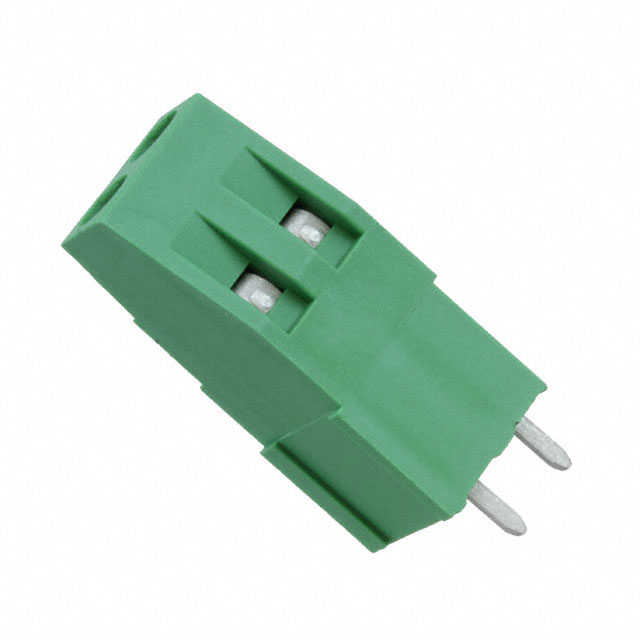

282900-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Clamp Material - Plating :

Brass - Nickel Plated

ECCN Code :

EAR99

Mating Orientation :

Horizontal with Board

Additional Feature :

94V-0, PA 6-6

Orientation :

Straight

Number of Contacts :

2

Depth :

10.2mm

Length :

10.5mm

Contact Material - Plating :

Brass - Tin Plated

Safety Approval :

UL

Radiation Hardening :

No

Mount :

Through Hole

Wire Gauge (Min) :

12 AWG

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Termination :

Solder

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Wire Gauge (Max) :

30 AWG

Mounting Type :

Through Hole

Pitch :

0.197 5.00mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Ways :

2

Max Current Rating :

17.5A

Packaging :

Bulk

Housing Material :

Polyamide (PA66), Nylon 6/6

Feature :

Interlocking (Rear, Side), Mid Wire Entry Level

Wire Gauge :

12-30 AWG

Voltage - Rated :

300V

Contact Material :

Brass

Connector Type :

Receptacle

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Length - Tail :

3.81mm

Series :

Buchanan

Wire Termination :

Screw - Rising Cage Clamp

Max Voltage Rating (AC) :

300V

Flammability Rating :

UL94 V-0

Current Rating :

17.5A

Number of Rows :

1

Contact Plating :

Tin

Operating Temperature :

-40°C~105°C

Number of Levels :

1

HTS Code :

8536.69.40.40

Published :

2007

Factory Lead Time :

21 Weeks

Max Supply Voltage (AC) :

300V

Screw Material - Plating :

Brass - Nickel Plated

Color :

Green

Number of Decks :

1

RoHS Status :

RoHS Compliant

Screw Thread :

M3
