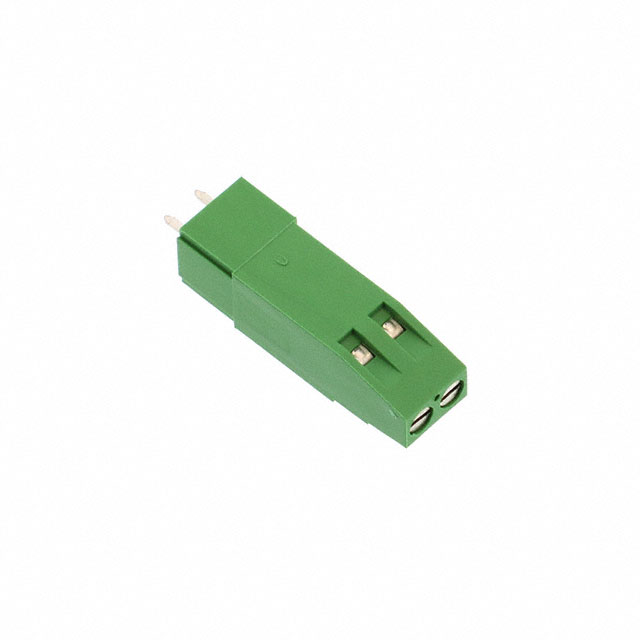

282905-2
Or copy the link below:
- Mfr.Part #
- 282905-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 2P SIDE ENT 5.08MM PCB
- Stock
- 10,454
- In Stock ：
- 10,454
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Number of Positions :
- 2
- Wire Gauge :
- 12-30 AWG
- Packaging :
- Bulk
- Number of Positions Per Level :
- 2
- Clamp Material - Plating :
- Brass - Nickel Plated
- Voltage :
- 300V
- Wire Gauge (Min) :
- 30 AWG
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Color :
- Green
- ELV :
- Compliant
- Screw Thread :
- M3
- Published :
- 2005
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Radiation Hardening :
- No
- Screw Material - Plating :
- Brass - Nickel Plated
- Mating Orientation :
- Horizontal with Board
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Feature :
- High Wire Entry Level, Interlocking (Front, Side)
- Current :
- 17.5A
- Wire Termination :
- Screw - Rising Cage Clamp
- Contact Material - Plating :
- Brass - Tin Plated
- Min Operating Temperature :
- -40°C
- Thread Size :
- M3
- RoHS Status :
- RoHS Compliant
- Max Voltage Rating (AC) :
- 250V
- Plating :
- Brass
- Number of Circuits :
- 2
- Factory Lead Time :
- 21 Weeks
- Wire Gauge (Max) :
- 30 AWG
- Contact Material :
- Brass
- Series :
- Buchanan
- Number of Contacts :
- 2
- Contact Plating :
- Tin
- Mounting Type :
- Through Hole
- Orientation :
- Straight
- Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -40°C~105°C
- Length - Tail :
- 3.81mm
- Connector Type :
- Receptacle
- Voltage - Rated :
- 300V
- Pitch :
- 0.200 5.08mm
- Current Rating :
- 17.5A
- Positions Per Level :
- 2
- Color :
- Green
- Max Operating Temperature :
- 105°C
- Number of Levels :
- 1
- Number of Rows :
- 1
- Termination :
- Solder
- Max Current Rating :
- 17.5A
- Mount :
- Through Hole
- Datasheets
- 282905-2
0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
282905-2 Overview
The product comes in a package of Receptacle.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Buchanan Series.Use it when the temperature is below 105°C.Temperatures below -40°C are required for this device to operate.It is more powerful in many ways due to its High Wire Entry Level, Interlocking (Front, Side) feature.It is mounted by Through Hole.It has 2 circuits.It operates at an operating temperature of -40°C~105°C.
282905-2 Features
Buchanan series
282905-2 Applications
There are a lot of TE Connectivity AMP Connectors
282905-2 Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
