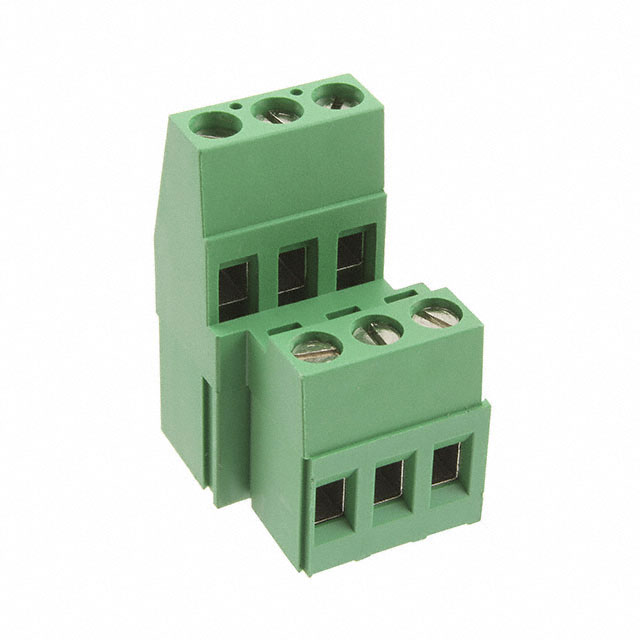

282909-3
Or copy the link below:
- Mfr.Part #
- 282909-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3P SIDE ENT 5.08MM PCB
- Stock
- 256
- In Stock ：
- 256
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- Wire Gauge (Max) :
- 30 AWG
- Screw Thread :
- M3
- ECCN Code :
- EAR99
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Mount :
- Through Hole
- ELV :
- Compliant
- Orientation :
- Straight
- Packaging :
- Bulk
- Published :
- 2007
- Max Current Rating :
- 24A
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- RoHS Status :
- RoHS Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Contact Material - Plating :
- Brass - Tin Plated
- Voltage - Rated :
- 300V
- Length - Tail :
- 3.9878mm
- Flammability Rating :
- UL94 V-0
- Wire Termination :
- Screw - Rising Cage Clamp
- Number of Levels :
- 2
- Wire Gauge (Min) :
- 30 AWG
- Radiation Hardening :
- No
- Contact Material :
- Brass
- Screw Material - Plating :
- Brass - Nickel Plated
- Number of Ways :
- 6
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Factory Lead Time :
- 13 Weeks
- Pitch :
- 0.200 5.08mm
- Clamp Material - Plating :
- Brass - Nickel Plated
- Connector Type :
- Receptacle
- Feature :
- Interlocking (Side)
- Pbfree Code :
- yes
- Number of Positions :
- 3
- Safety Approval :
- UL
- Number of Decks :
- 2
- Mating Orientation :
- Horizontal with Board
- Number of Rows :
- 2
- Series :
- Buchanan
- Contact Plating :
- Tin
- Additional Feature :
- PA66, 94V-0
- Current Rating :
- 24A
- Color :
- Green
- Wire Gauge :
- 12-30 AWG
- Termination :
- Screw
- Operating Temperature :
- -40°C~105°C
- Datasheets
- 282909-3
0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 2 Levels 12-30 AWG Buchanan
282909-3 Overview
This product is packaged in a Receptacle cartonThis device's mounting type is Through Hole.It's packaged in a Bulk case.Buchanan Series product.There are also features like PA66, 94V-0, just to name a few.Its Interlocking (Side) feature makes it more powerful in a number of ways.Through Hole is mounting the part.Running in -40°C~105°C Operating Temperature.
282909-3 Features
Buchanan series
282909-3 Applications
There are a lot of TE Connectivity AMP Connectors
282909-3 Terminal Blocks applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
