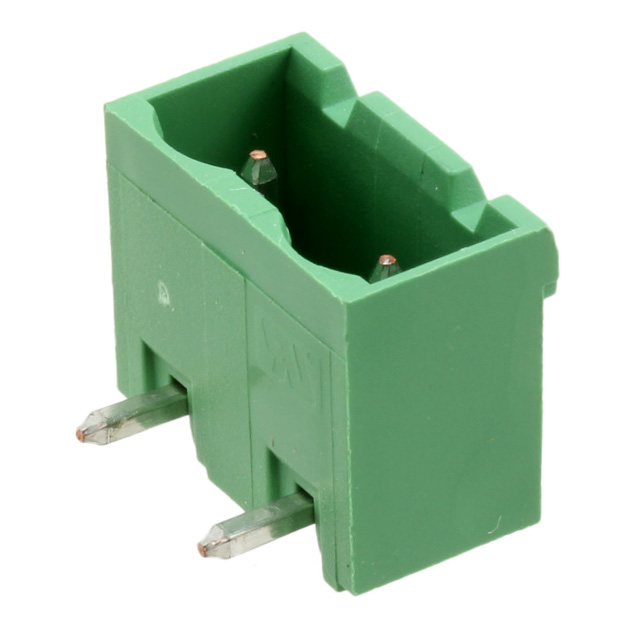

282966-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Voltage - UL :

300V

Housing Material :

Polyamide (PA66), Nylon 6/6

Current :

15A

Packaging :

Bulk

Housing Color :

Green

Number of Contacts :

2

Mounting Type :

Through Hole

Radiation Hardening :

No

Header Orientation :

90°, Right Angle

Max Voltage Rating (AC) :

300V

Min Operating Temperature :

-40°C

Contact Material :

COPPER ALLOY

Shrouding :

yes

Insulation Height :

0.329 8.36mm

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Max Operating Temperature :

105°C

Number of Levels :

1

Contact Tail Length :

0.138 3.50mm

Flammability Rating :

UL94 V-0

Pitch :

0.300 7.62mm

Published :

2007

Positions Per Level :

2

Type :

Header, Male Pins, Shrouded (4 Side)

Material Flammability Rating :

UL94 V-0

Length :

14.44mm

Number of Rows :

1

Operating Temperature :

-40°C~110°C

Mount :

Through Hole

Length - Tail :

3.5mm

Contact Plating :

Tin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination Style :

Solder

Factory Lead Time :

12 Weeks

Max Current Rating :

15A

Current - UL :

15A

Voltage - Rated :

300V

Orientation :

RIGHT ANGLE

Color :

Green

Voltage :

300V

RoHS Status :

RoHS Compliant

Series :

Buchanan

Current Rating :

15A

Number of Positions :

2

Voltage - Rated AC :

300V

Contact Mating Finish :

Tin

ELV :

Compliant

Connector Type :

Header

Termination :

Solder

Depth :

12mm

Number of Positions Per Level :

2
