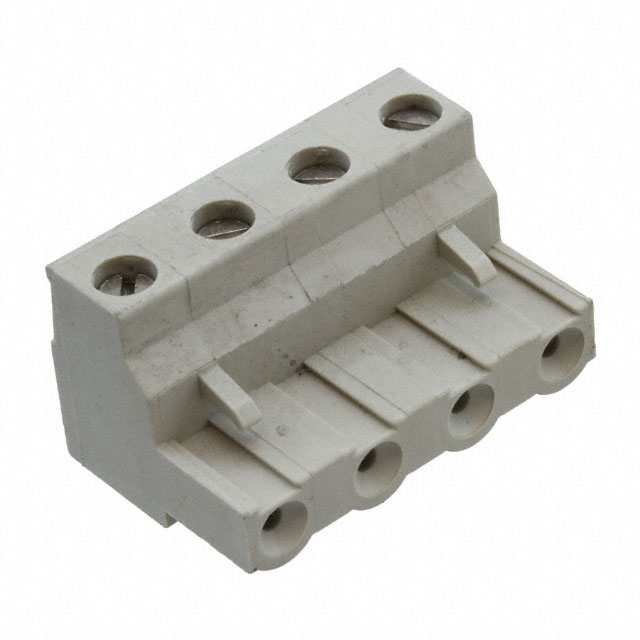

282959-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Wire Gauge or Range - mm² :

0.05-3mm2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Screw Size :

M3

Voltage - Rated :

300V

Flammability Rating :

UL94 V-0

Material Flammability Rating :

UL94 V-0

Packaging :

Bulk

Connector Type :

PLUG

ECCN Code :

EAR99

Mounting Type :

Free Hanging (In-Line)

Contact Mating Finish :

Tin

Wire Gauge (Max) :

30 AWG

Operating Temperature :

-40°C~110°C

Plug Wire Entry :

180°

Safety Approval :

UL

Max Current Rating :

15A

ELV :

Compliant

Color :

Green

Number of Positions :

4

Current Rating :

15A

Published :

2007

Current :

15A

Lead Free :

Not Applicable

Number of Rows :

1

Voltage - Rated AC :

300V

Feature :

Retention Latches (Non-Wire Side)

Wire Gauge or Range - AWG :

12-30 AWG

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Torque - Screw :

0.79 Nm (7.0 Lb-In)

RoHS Status :

RoHS Compliant

Wire Gauge (Min) :

12 AWG

Type :

Plug, Female Sockets

Housing Material :

Polyamide (PA66), Nylon 6/6

Termination :

Screw

Orientation :

RIGHT ANGLE

Number of Contacts :

4

Voltage :

300V

Wire Strip Length :

6-7.5mm

Pitch :

0.295 7.50mm

Contact Material :

Phosphor Bronze

Mount :

Cable, Free Hanging

Number of Ways :

10

Max Voltage Rating (AC) :

300V

Termination Style :

Screw - Rising Cage Clamp

Wire Cross Section :

2.5 mm2

Insulation Height :

0.610 15.49mm

Series :

Buchanan

Factory Lead Time :

13 Weeks

Number of Levels :

1

Number of Decks :

1

Radiation Hardening :

No
