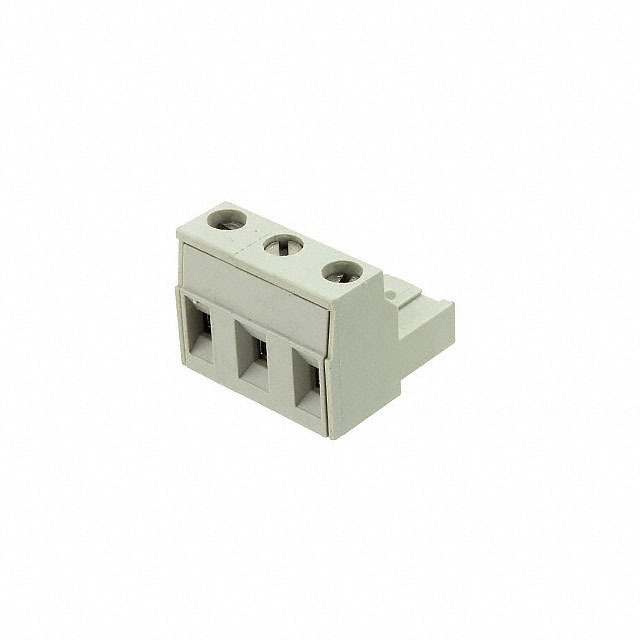

282959-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Orientation :

RIGHT ANGLE

ELV :

Compliant

Plug Wire Entry :

180°

Number of Ways :

3

Wire Gauge (Min) :

30 AWG

Number of Rows :

1

Termination Style :

Screw - Rising Cage Clamp

Number of Contacts :

3

Wire Strip Length :

6-7.5mm

Type :

Plug, Female Sockets

Mounting Type :

Free Hanging (In-Line)

Number of Decks :

1

Mount :

Free Hanging, Through Hole

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Housing Material :

Polyamide (PA66), Nylon 6/6

Operating Temperature :

-40°C~110°C

Max Current Rating :

15A

Color :

Green

ECCN Code :

EAR99

Wire Gauge (Max) :

30 AWG

Series :

Buchanan

RoHS Status :

RoHS Compliant

Pitch :

0.295 7.50mm

Voltage - Rated AC :

300V

Wire Gauge or Range - AWG :

12-30 AWG

Connector Type :

PLUG

Feature :

Retention Latches (Non-Wire Side)

Max Voltage Rating (AC) :

300V

Additional Feature :

94V-0, PA 6-6

Published :

2007

Number of Levels :

1

Radiation Hardening :

No

Voltage - Rated :

300V

Current Rating :

15A

Termination :

Solder

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Flammability Rating :

UL94 V-0

Contact Mating Finish :

Tin

Material Flammability Rating :

UL94 V-0

Current :

15A

Factory Lead Time :

13 Weeks

Lead Free :

Not Applicable

Wire Gauge or Range - mm² :

0.05-3mm2

Contact Material :

Phosphor Bronze

Screw Size :

M3

Safety Approval :

UL

Packaging :

Bulk

Wire Cross Section :

2.5 mm2

Insulation Height :

0.610 15.49mm

Number of Positions :

3

Voltage :

300V

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)
