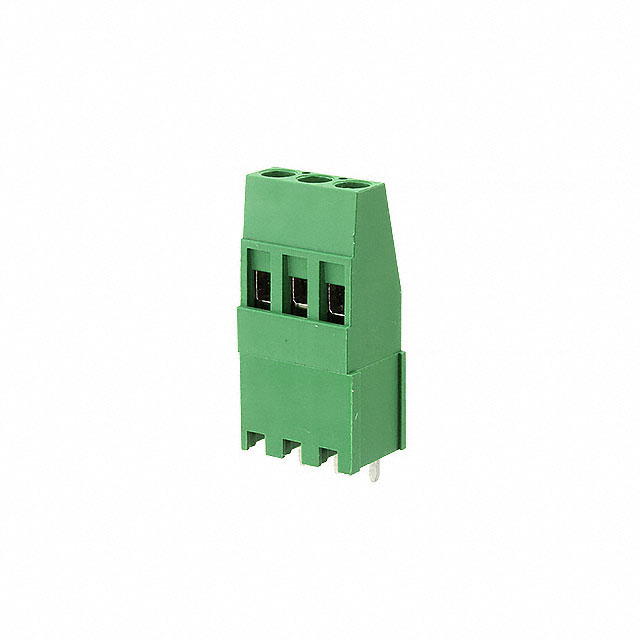

282921-3
Or copy the link below:
- Mfr.Part #
- 282921-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3P SIDE ENT 5.08MM PCB
- Stock
- 1,762
- In Stock ：
- 1,762
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Contact Material - Plating :
- Brass - Tin Plated
- Orientation :
- Straight
- Wire Gauge (Min) :
- 30 AWG
- Mount :
- Through Hole
- Rated Current (Signal) :
- 6A
- Series :
- Buchanan
- Contact Design :
- PREASSEM CONN
- Number of Positions Per Level :
- 3
- Reliability :
- COMMERCIAL
- Contact Finish - Mating :
- SN
- Color :
- Green
- Factory Lead Time :
- 13 Weeks
- Pitch :
- 0.200 5.08mm
- Additional Feature :
- LOOSE PIECE PACKAGING
- Flammability Rating :
- UL94 V-0
- Current Rating :
- 24A
- Operating Temperature :
- -40°C~105°C
- Number of Rows :
- 2
- Lead Free :
- Lead Free
- Published :
- 2011
- Wire Gauge (Max) :
- 30 AWG
- Wire Size (Min) :
- 20 AWG
- Packaging :
- Bulk
- Clamp Material - Plating :
- Brass - Nickel Plated
- RoHS Status :
- RoHS Compliant
- Length - Tail :
- 3.9878mm
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Radiation Hardening :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 300V
- Mating Orientation :
- Horizontal with Board
- Wire Termination :
- Screw - Rising Cage Clamp
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Contact Pattern :
- RECTANGULAR
- Mounting Type :
- Through Hole
- Insertion Force-Max :
- 8.0064 N
- Screw Material - Plating :
- Brass - Nickel Plated
- Connector Type :
- Receptacle
- Total Number of Contacts :
- 16
- Feature :
- Interlocking (Rear, Side), Mid Wire Entry Level
- Reference Standard :
- UL
- Contact Material :
- Brass
- Wire Gauge :
- 12-30 AWG
- Termination :
- Screw
- Contact Plating :
- Tin
- Contact Style :
- BELLOWED TYPE
- ELV :
- Compliant
- Insulation Diameter-Min :
- 0.079 inch
- Plating Thickness :
- 79μin
- Screw Thread :
- M3
- Number of Levels :
- 1
- Datasheets
- 282921-3
282921-3 Documents
0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
282921-3 Overview
Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Buchanan Series.Other features include LOOSE PIECE PACKAGING, to name just a few.Several benefits come from the Interlocking (Rear, Side), Mid Wire Entry Level feature.There is a mounting hole at Through Hole.Devices operate at -40°C~105°C operating temperatures.
282921-3 Features
Buchanan series
282921-3 Applications
There are a lot of TE Connectivity AMP Connectors
282921-3 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
