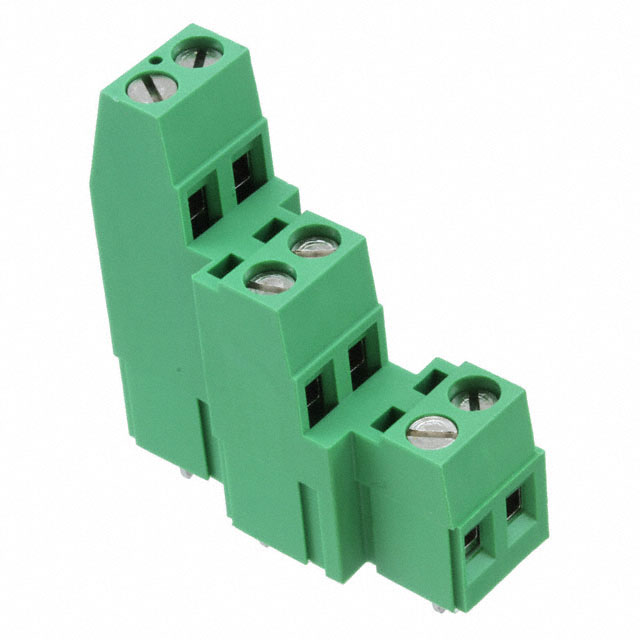

282897-2
Or copy the link below:
- Mfr.Part #
- 282897-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 2P SIDE ENT 5.08MM PCB
- Stock
- 117
- In Stock ：
- 117
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Wire Gauge :
- 12-30 AWG
- RoHS Status :
- RoHS Compliant
- Wire Gauge (Max) :
- 30 AWG
- Mating Orientation :
- Horizontal with Board
- Orientation :
- Straight
- Length - Tail :
- 3.81mm
- Termination :
- Screw
- ELV :
- Compliant
- Positions Per Level :
- 2
- Wire Gauge (Min) :
- 12 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 300V
- Contact Material :
- Brass
- Housing Color :
- Green
- Min Operating Temperature :
- -40°C
- Thread Size :
- M3
- Connector Type :
- Receptacle
- Contact Material - Plating :
- Brass - Tin Plated
- Current :
- 17.5A
- Current Rating :
- 17.5A
- Number of Circuits :
- 2
- Max Current Rating :
- 17.5A
- Voltage :
- 300V
- Mounting Type :
- Through Hole
- Feature :
- Interlocking (Side)
- Radiation Hardening :
- No
- Max Operating Temperature :
- 105°C
- Color :
- Green
- Published :
- 2007
- Screw Material - Plating :
- Brass - Nickel Plated
- Series :
- Buchanan
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Mount :
- Through Hole
- Operating Temperature :
- -40°C~105°C
- Number of Positions Per Level :
- 2
- Number of Rows :
- 3
- Contact Plating :
- Tin
- Wire Termination :
- Screw - Rising Cage Clamp
- Number of Levels :
- 3
- Flammability Rating :
- UL94 V-0
- Pitch :
- 0.200 5.08mm
- Number of Contacts :
- 6
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Plating :
- Brass
- Factory Lead Time :
- 13 Weeks
- Packaging :
- Bulk
- Screw Thread :
- M3
- Clamp Material - Plating :
- Brass - Nickel Plated
- Number of Positions :
- 2
- Datasheets
- 282897-2
0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 3 Levels 12-30 AWG Buchanan
282897-2 Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.A temperature below 105°C is best for using it.The device must run at -40°C degrees.A number of features make the Interlocking (Side) feature more powerful.Through Hole represents the mounting point for the part.Contains 2 circuits.-40°C~105°C Operating Temperature is the default operating temperature for the device.
282897-2 Features
Buchanan series
282897-2 Applications
There are a lot of TE Connectivity AMP Connectors
282897-2 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
