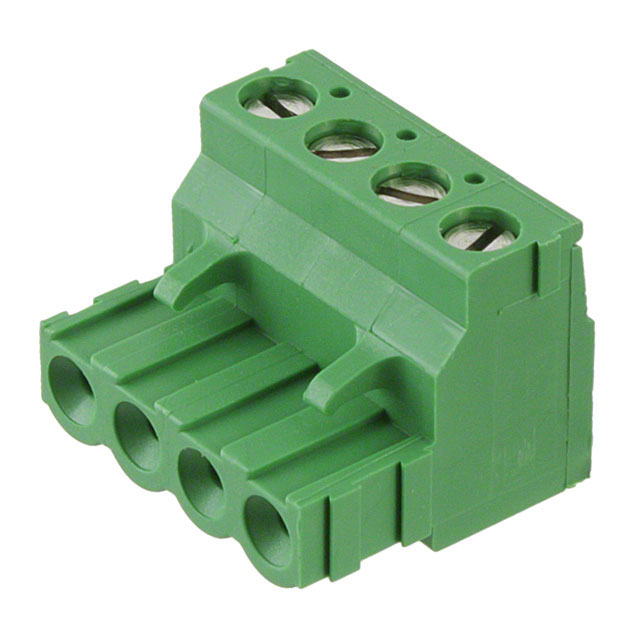

282807-4

Share

Or copy the link below:

Mfr.Part #
282807-4
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
TERM BLOCK PLUG 4POS STR 5.08MM
Stock
26,116
In Stock :
26,116

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Plugs and Sockets
Orientation :
RIGHT ANGLE
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Wire Gauge (Max) :
30 AWG
Width :
18.4mm
Length :
20.32mm
Voltage - Rated :
300V
Published :
2003
Number of Ways :
4
Mount :
Cable, Free Hanging
Housing Material :
Polyamide (PA66), Nylon 6/6
Wire Gauge (Min) :
12 AWG
Safety Approval :
UL
Number of Rows :
1
Depth :
18.4mm
Wire Cross Section :
2.5 mm2
Lifecycle Status :
ACTIVE (Last Updated: 2 days ago)
Contact Material :
Phosphor Bronze
Voltage - Rated AC :
300V
Wire Strip Length :
6-7.5mm
Operating Temperature :
-40°C~110°C
Number of Levels :
1
Mounting Type :
Free Hanging (In-Line)
Max Current Rating :
15A
ELV :
Compliant
Packaging :
Bulk
Screw Size :
M3
Series :
Buchanan
Feature :
Interlocking (Side), Retention Latches (Non-Wire Side)
Number of Positions Per Level :
4
Gender :
FEMALE
Lead Free :
Lead Free
Contact Mating Finish :
Tin
Termination Style :
Screw - Rising Cage Clamp
Type :
Plug, Female Sockets
Number of Decks :
1
Material Flammability Rating :
UL94 V-0
Current :
15A
Plug Wire Entry :
180°
Voltage :
300V
RoHS Status :
RoHS Compliant
Wire Gauge or Range - AWG :
12-30 AWG
Factory Lead Time :
13 Weeks
Termination :
Screw
Max Supply Voltage (AC) :
300V
Insulation Height :
0.610 15.49mm
Pitch :
0.200 5.08mm
Flammability Rating :
UL94 V-0
Material :
Nylon
REACH SVHC :
Unknown
Connector Type :
PLUG
Torque - Screw :
0.79 Nm (7.0 Lb-In)
Current Rating :
15A
ECCN Code :
EAR99
Radiation Hardening :
No
Color :
Green
Datasheets
282807-4
Introducing Headers, Plugs and Sockets TE Connectivity AMP Connectors 282807-4 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-40°C~110°C, Mounting Type:Free Hanging (In-Line), Type:Plug, Female Sockets, Voltage:300V, 282807-4 pinout, 282807-4 datasheet PDF, 282807-4 amp .Beyond Headers, Plugs and Sockets TE Connectivity AMP Connectors 282807-4 ,we also offer 1984028, TJ0211530000G, 1945151, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 282807-4


Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets Buchanan Polyamide (PA66), Nylon 6/6 Tin Phosphor Bronze

282807-4 Overview


The product is packaged in Plug.This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Buchanan Series.There are a number of advantages to its Interlocking (Side), Retention Latches (Non-Wire Side) feature.Part Cable, Free Hanging is mounted to the part.As a result, the device runs at -40°C~110°C Operating Temperature.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.

282807-4 Features


Buchanan series


282807-4 Applications


There are a lot of TE Connectivity AMP Connectors
282807-4 Terminal Blocks applications.


  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
