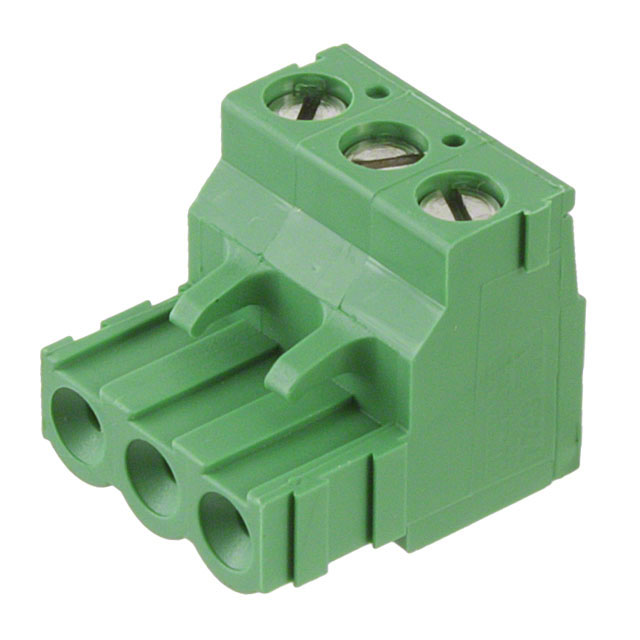

282807-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Wire Gauge or Range - AWG :

12-30 AWG

Radiation Hardening :

No

REACH SVHC :

Unknown

ELV :

Compliant

Gender :

FEMALE

Max Supply Voltage (AC) :

300V

Material :

Nylon

Pitch :

0.200 5.08mm

Wire Gauge (Min) :

15 AWG

Number of Levels :

1

Plug Wire Entry :

180°

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Material Flammability Rating :

UL94 V-0

Wire Strip Length :

6-7.5mm

Published :

2003

Wire Cross Section :

2.5 mm2

Connector Type :

PLUG

Insulation Height :

0.610 15.49mm

Additional Feature :

PA 66, 94V-0, LATCHED, POLARIZED

Feature :

Interlocking (Side), Retention Latches (Non-Wire Side)

Operating Temperature :

-40°C~110°C

Factory Lead Time :

13 Weeks

Current :

15A

Housing Material :

Polyamide (PA66), Nylon 6/6

Max Current Rating :

15A

ECCN Code :

EAR99

Voltage - Rated :

300V

Termination Style :

Screw - Rising Cage Clamp

Color :

Green

Contact Material :

Phosphor Bronze

Current Rating :

15A

Contact Mating Finish :

Tin

Voltage :

300V

Lead Free :

Not Applicable

Screw Size :

M3

Wire Gauge (Max) :

30 AWG

Depth :

18.4mm

Number of Decks :

1

Mount :

Cable, Free Hanging

Type :

Plug, Female Sockets

RoHS Status :

RoHS Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

Buchanan

Termination :

Screw

Safety Approval :

UL

Flammability Rating :

UL94 V-0

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Number of Contacts :

3

Number of Ways :

3

Mounting Type :

Free Hanging (In-Line)

Length :

15.24mm

Number of Rows :

1

Orientation :

RIGHT ANGLE

Width :

18.4mm

Packaging :

Bulk

Max Voltage Rating (AC) :

300V
