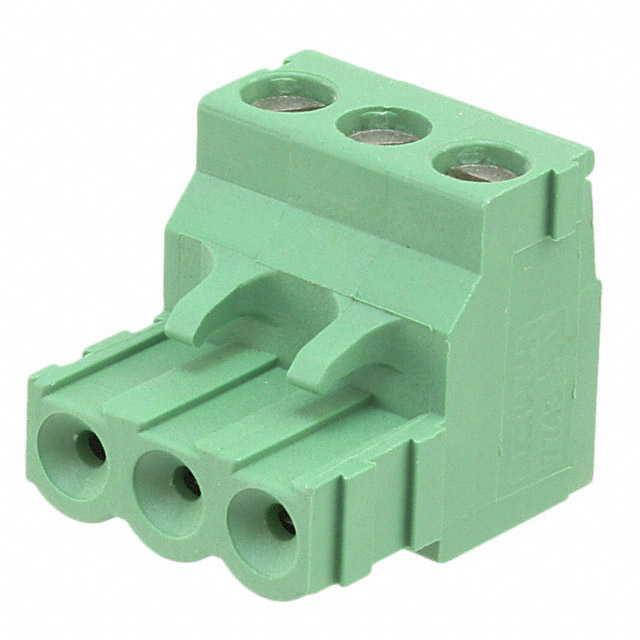

282805-3
Or copy the link below:
- Mfr.Part #
- 282805-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 3POS STR 5MM
- Stock
- 12,703
- In Stock ：
- 12,703
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Plug Wire Entry :
- 180°
- Number of Poles :
- 3
- Contact Mating Finish :
- Tin
- Max Current Rating :
- 15A
- Orientation :
- RIGHT ANGLE
- Mount :
- Free Hanging, Through Hole
- RoHS Status :
- RoHS Compliant
- Number of Circuits :
- 3
- Feature :
- Interlocking (Side), Retention Latches (Non-Wire Side)
- Screw Size :
- M3
- Material Flammability Rating :
- UL94 V-0
- Thread Size :
- M3
- Voltage - Rated :
- 300V
- Housing Color :
- Green
- Wire Gauge or Range - AWG :
- 12-30 AWG
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Contact Plating :
- Tin
- Number of Positions :
- 3
- Wire Gauge (Max) :
- 30 AWG
- Contact Material :
- Phosphor Bronze
- Voltage - UL :
- 300V
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Radiation Hardening :
- No
- Termination :
- Screw
- Number of Rows :
- 1
- Packaging :
- Bulk
- Color :
- Green
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current - UL :
- 15A
- Voltage :
- 300V
- Termination Style :
- Screw - Rising Cage Clamp
- Number of Positions Per Level :
- 3
- Wire Strip Length :
- 6-7.5mm
- Connector Type :
- PLUG
- Length :
- 15.5mm
- Factory Lead Time :
- 13 Weeks
- Current :
- 15A
- Type :
- Plug, Female Sockets
- Gender :
- FEMALE
- Depth :
- 18.4mm
- Mounting Type :
- Free Hanging (In-Line)
- Number of Levels :
- 1
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Lead Free :
- Not Applicable
- Width :
- 15.5mm
- Insulation Height :
- 0.610 15.49mm
- Wire Gauge or Range - mm² :
- 0.05-3mm2
- Current Rating :
- 15A
- ELV :
- Compliant
- Series :
- Buchanan
- Wire Gauge (Min) :
- 12 AWG
- Operating Temperature :
- -40°C~110°C
- Pitch :
- 0.197 5.00mm
- Positions Per Level :
- 3
- Published :
- 2002
- Flammability Rating :
- UL94 V-0
- Number of Contacts :
- 3
- Datasheets
- 282805-3
Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets Buchanan Polyamide (PA66), Nylon 6/6 Tin Phosphor Bronze
282805-3 Overview
This product is packaged in a Plug box.Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Buchanan Series.In many ways, Interlocking (Side), Retention Latches (Non-Wire Side) makes it more powerful.By Free Hanging, Through Hole, the part is mounted.It consists of 3 circuits.Operating temperature is set to -40°C~110°C.It is a part that shares many benefits with other products from the Plug, Female Sockets line.
282805-3 Features
Buchanan series
282805-3 Applications
There are a lot of TE Connectivity AMP Connectors
282805-3 Terminal Blocks applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
