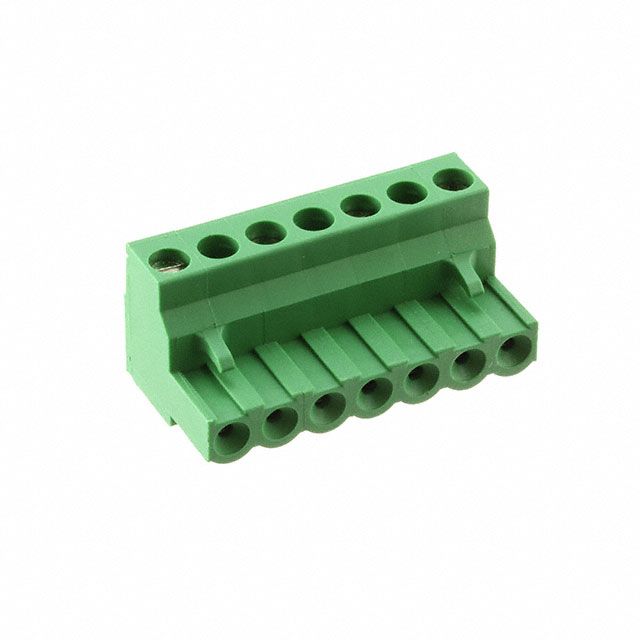

282808-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

RoHS Status :

RoHS Compliant

Voltage - Rated :

600V

Feature :

Retention Latches (Non-Wire Side)

Length :

35mm

Current Rating :

15A

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

ECCN Code :

EAR99

Max Supply Voltage (AC) :

600V

Published :

2005

Max Current Rating :

15A

Number of Ways :

4

Wire Gauge (Min) :

30 AWG

Pitch :

0.394 10.00mm

Orientation :

RIGHT ANGLE

Depth :

18.4mm

Wire Strip Length :

6-7.5mm

Contact Material :

Phosphor Bronze

Packaging :

Bulk

Radiation Hardening :

No

Wire Cross Section :

2.5 mm2

Number of Levels :

1

Termination :

Screw

Mounting Type :

Free Hanging (In-Line)

Operating Temperature :

-40°C~110°C

Material Flammability Rating :

UL94 V-0

Termination Style :

Screw - Rising Cage Clamp

Factory Lead Time :

13 Weeks

Safety Approval :

UL

Additional Feature :

POLARIZED

Voltage :

600V

Wire Gauge or Range - AWG :

12-30 AWG

Wire Gauge or Range - mm² :

0.03-2.5mm2

Series :

Buchanan

ELV :

Compliant

Connector Type :

PLUG

Number of Contacts :

4

Number of Decks :

1

Plug Wire Entry :

180°

Type :

Plug, Female Sockets

Color :

Green

Max Voltage Rating (AC) :

600V

Mount :

Cable, Free Hanging

Wire Gauge (Max) :

30 AWG

Insulation Height :

0.610 15.49mm

Number of Rows :

1

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Contact Mating Finish :

Tin

Lead Free :

Lead Free

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Screw Size :

M3

Current :

15A

Pbfree Code :

yes

Flammability Rating :

UL94 V-0

Housing Material :

Polyamide (PA66), Nylon 6/6
