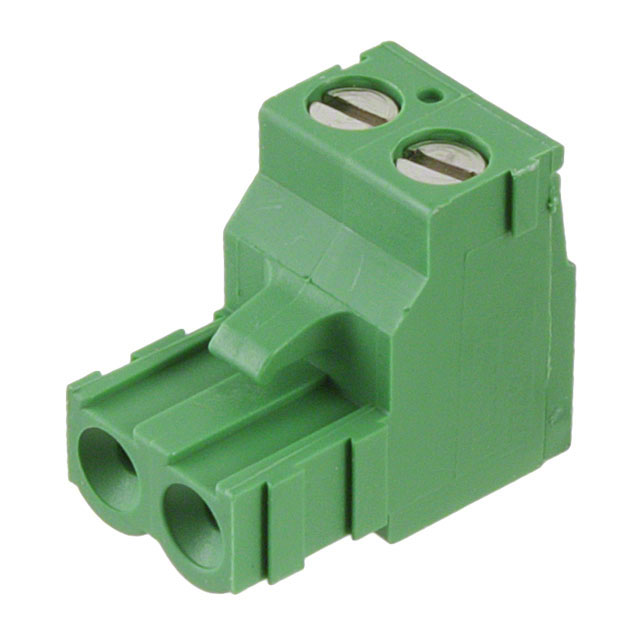

282807-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Wire Strip Length :

6-7.5mm

Factory Lead Time :

13 Weeks

Termination :

Screw

Material Flammability Rating :

UL94 V-0

Packaging :

Bulk

Contact Mating Finish :

Tin

Current :

15A

Material :

Nylon

Number of Contacts :

2

RoHS Status :

RoHS Compliant

Max Supply Voltage (AC) :

300V

Wire Gauge or Range - AWG :

12-30 AWG

Published :

2003

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Flammability Rating :

UL94 V-0

Current Rating :

15A

ECCN Code :

EAR99

Max Current Rating :

15A

Series :

Buchanan

Mount :

Cable, Free Hanging

Type :

Plug, Female Sockets

Voltage :

300V

Depth :

18.4mm

Operating Temperature :

-40°C~110°C

Insulation Height :

0.610 15.49mm

Wire Gauge (Max) :

30 AWG

REACH SVHC :

Unknown

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Voltage - Rated AC :

300V

Plug Wire Entry :

180°

Number of Decks :

1

Additional Feature :

PA 66, 94V-0, LATCHED, POLARIZED

Pitch :

0.200 5.08mm

Number of Rows :

1

HTS Code :

8536.69.40.40

Housing Material :

Polyamide (PA66), Nylon 6/6

Length :

10.16mm

Safety Approval :

UL

Contact Material :

Phosphor Bronze

Mounting Type :

Free Hanging (In-Line)

Max Voltage Rating (AC) :

300V

Termination Style :

Screw - Rising Cage Clamp

Screw Size :

M3

Feature :

Interlocking (Side), Retention Latches (Non-Wire Side)

Number of Levels :

1

Number of Ways :

2

Color :

Green

Orientation :

RIGHT ANGLE

Voltage - Rated :

300V

Radiation Hardening :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Gauge (Min) :

12 AWG

Connector Type :

PLUG

Gender :

FEMALE

Width :

18.4mm
